GPS device

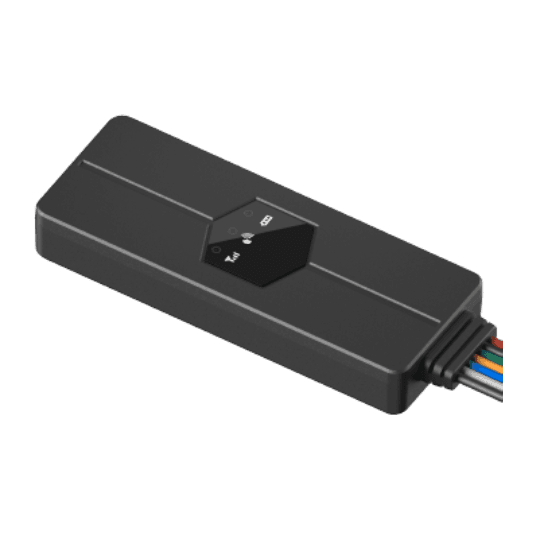

Jimi EG02
Jimi IoT (Concox)Bid farewell to conventional electric scooter keys and welcome the efficient anti-theft EG02. As compact as a lighter, the EG02 GPS tracker boasts a plug & play design and supports GPS & LBS real-time tracking. With the app, you can effortlessly lock and unlock your e-scooter from a distance. If any unauthorized movement is detected, an audio alarm will be activated. The wide working voltage range of 9-90V allows the EG02 to be compatible with various e-scooter models in the market. This device's extensive operating voltage capacity makes it suitable for a vast array of vehicles, such as industrial equipment, scooters, golf carts, and more. Moreover, the optimized battery protection safeguards vehicle batteries from depletion or damage.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 43 g |
| Size | 77x29x13 mm |
| Waterproof class | IPX5 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 1 |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Can Use Dns | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_level | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
