GPS device

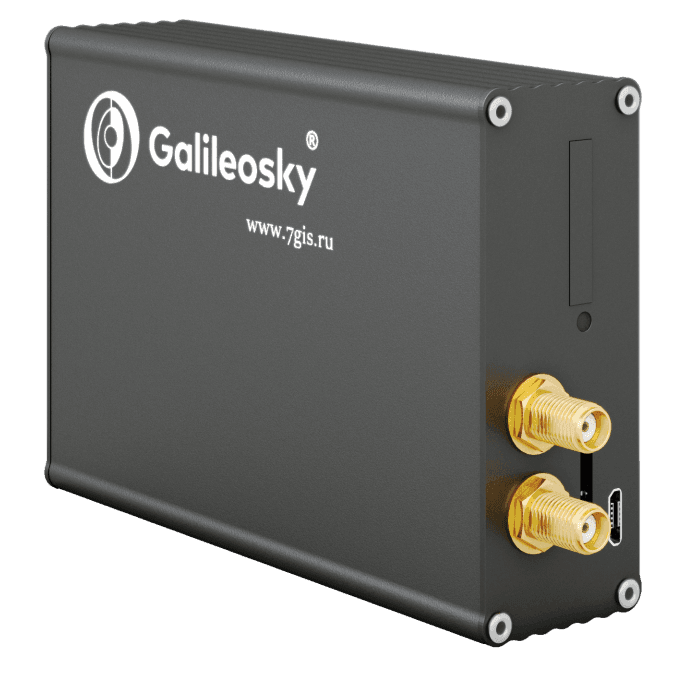

Galileosky v2.5 Lite
GalileoskyGalileosky 2.5 Lite is a vehicle GPS/GLONASS tracker combines convenience and quality. It is specially designed for fleet management as well as personal needs of vehicle and van owners. The device has a wide range of options due to multiple inputs, outputs and interfaces. Also, it is equipped by external GNSS and GPRS antennas. This model differs from Galileosky 2.5 by the absence of a 1-wire and RS-232 and CAN interfaces.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47773 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 300 g |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
Features
| Digital Inputs | Yes |
| Auto Registration | Yes |
| Digital Outputs | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| can_16bit_r_15 | Yes |
| can_32bit_r_15 | Yes |
| can_8bit_r_31 | Yes |
| can_axle_load_5 | Yes |
| can_consumption | Yes |
| can_engine_hours | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_mileage | Yes |
| can_r_prefix | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| freq_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_4 | Yes |
| modbus_64 | Yes |
| temp_sensor | Yes |
| user_data_8 | Yes |
