GPS device

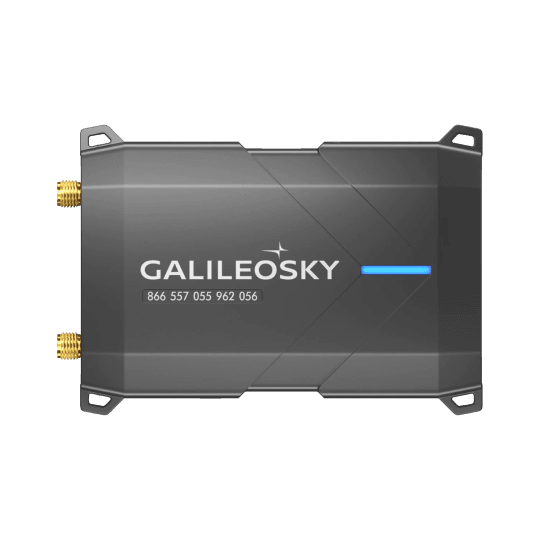

Galileosky 10 Plus
GalileoskyThe Galileosky 10 Plus represents an advanced range of GPS/GLONASS tracking tools, offering a broad suite of features for adaptable management of both fleet and stationary assets. This model integrates sophisticated technologies such as Easy Logic and CAN Scanner for monitoring, along with the Exigner Driver App for driver usage. A unique feature of the Galileosky 10 Plus is its “CAN 2.0 B” and other interfaces for the additional telematics monitoring such as RS 232, RS 485, and 1-Wire. In addition, device supports a Bluetooth 5.0 interface for additional wireless sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47773 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 150 g |
| Size | 90x66.5x25.5 mm |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 8 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Features
| Digital Inputs | Yes |
| Auto Registration | Yes |
| Digital Outputs | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| can_16bit_r_15 | Yes |
| can_32bit_r_15 | Yes |
| can_8bit_r_31 | Yes |
| can_axle_load_5 | Yes |
| can_consumption | Yes |
| can_engine_hours | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_mileage | Yes |
| can_r_prefix | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| ext_temp_sensor_8 | Yes |
| freq_8 | Yes |
| hw_mileage | Yes |
| impulse_counter_8 | Yes |
| lls_level_16 | Yes |
| lls_temperature_16 | Yes |
| modbus_64 | Yes |
| passengers_entered_8 | Yes |
| passengers_exit_8 | Yes |
| raw_can_4 | Yes |
| rs232_1 | Yes |
| temp_sensor | Yes |
| user_data_8 | Yes |
