GPS device
Arnavi A3

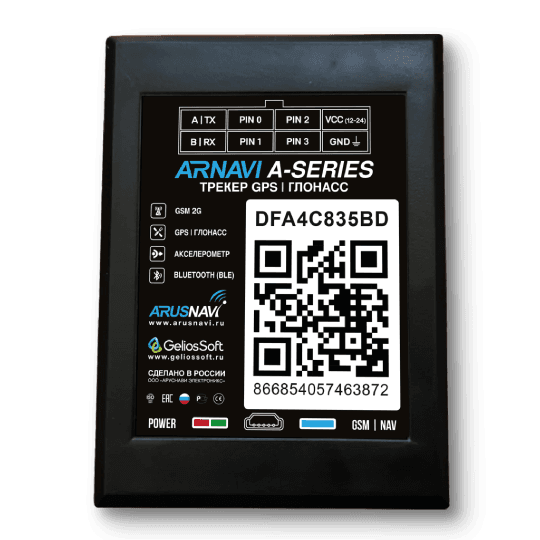

ArusnaviArnavi A3 is a compact device designed to remotely monitor objects and collect data from the equipment installed on them. Data transmission to the server is carried out via 2G networks. The device is equipped with 3 discrete inputs, 1 digital output, built-in temperature sensor. RS-485 and RS-232 interfaces expand the device capabilities even more. Arnavi A3 has a sensitive accelerometer provides additional harsh driving monitoring. A3 model is similar to A2 but has external GNSS antenna.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47756 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 70x52x22 mm |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 1 |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| board_voltage | Yes |
| custom_param_255 | Yes |
| freq_3 | Yes |
| hw_mileage | Yes |
| impulse_counter_3 | Yes |
| lls_level_5 | Yes |
| lls_temperature_5 | Yes |
| val_20 | Yes |
