GPS device
Arnavi A1

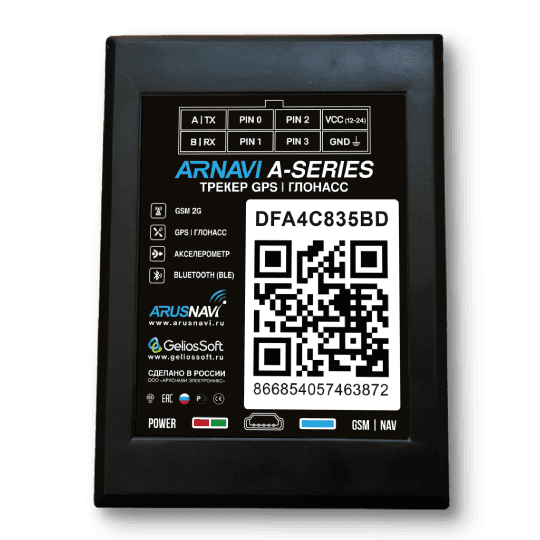

ArusnaviArnavi A1 is a compact device designed to remotely monitor objects and collect data from the equipment installed on them. Data transmission to the server is carried out via 2G networks. The device is equipped with 3 discrete inputs, 1 digital output and built-in temperature sensor. Sensitive accelerometer provides additional harsh driving monitoring.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47756 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 70x52x22 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 1 |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| board_voltage | Yes |
| custom_param_255 | Yes |
| freq_3 | Yes |
| hw_mileage | Yes |
| impulse_counter_3 | Yes |
| val_20 | Yes |
