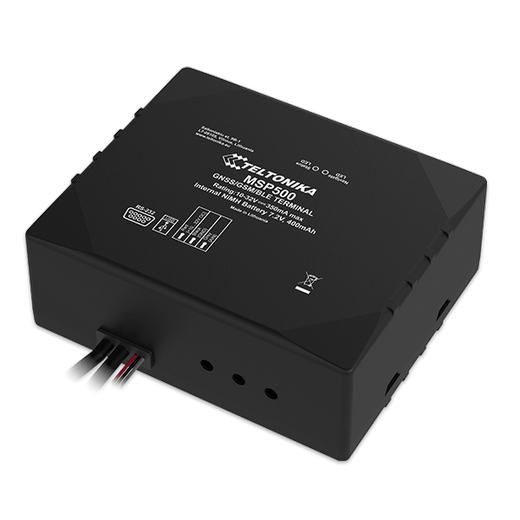

Teltonika MSP500
Teltonika MSP500 is a special tracking terminal with GNSS/GSM/Bluetooth connectivity, internal GNSS/GSM antennas, RS232 interface and internal Ni-Mh battery. Device was designed for speed limiting control. Moreover, device contains integrated buzzer and relay for a speed limiting functionality based on a fuel pump power supply switching or accelerator pedal control using additional electronic throttle controller.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 250 g (8.82 oz.) |
| Size | 103x86x39 mm (4.06x3.39x1.54 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900 |
| Cellular network generation | 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 400 mAh |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 2 |
| Analog sensor | Yes |
| Impulse counter | Yes |
| Frequency sensor | Yes |
Input Fields
State Fields
Events monitoring
