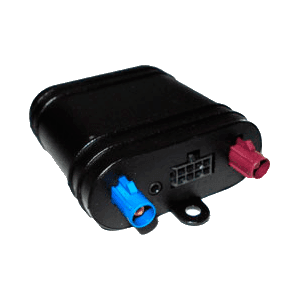

SkyPatrol TT8750

The SkyPatrol TT8750 is an innovative certified dual & quad-band tracker that is optimized for today’s increasing demand for vehicle recovery, fuel efficient fleet operations, driver and vehicle profiling and interactive communications. Providing complete GSM/GPRS communications TT8750 helps you track and monitor vehicles from the family car to the largest fleet of commercial vehicles.

Show more

Location and tracking

SkyPatrol TT8750 is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

Mobile networks

With Quad-band GSM module SkyPatrol TT8750 can be operated all over the world.

Power supply

External power supply might be 7-40V, which makes possible to install SkyPatrol TT8750 both on cars and vans.

Device also features a built-in rechargeable 230 mAh backup battery. When fully charged it ensures about an hour of device operation (in normal conditions).

The battery features:

  • Overload protection
  • Temperature sensing (will disconnect charging if out of temp range, 0-45 degrees C)
  • Battery identification (prevents user from trying to power the unit with an unauthorized battery, or change an unauthorized battery)

Local and remote management

SkyPatrol TT8750 device can be configured and managed over-the-air.

In case you are not able to configure device over the air, manual management over SMS-commands and configuration software is also available.

Features

SkyPatrol TT8750 offers following features:

  • Support for Garmin’s Fleet Management Interface (FMI) (optional)
  • Enable virtually any telematics application with included software suite
  • Flexible customization through built-in programmable rules engine, a network router & control automation capabilities
  • Wireless data and voice port available on TT8750 for user email and voice communication
  • Geo-fencing & GPIO’s
  • Auto-registration on power up
  • Internal battery back-up on the TT8750 allows for continued operation when main input power is removed
  • Integrated SMS for commands & messages

LED Indication

SkyPatrol TT8750 has three LEDs on its front panel:

  • GPS PWR – indicates power to the GPS module
  • User LED 1 – By default this LED shows GSM/GPRS status. It can be configured to display registration, or other user functions.
  • User LED 2 – By default this LED shows GPS fix status. It can be configured to display registration, GPS fix status, or other functions.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47711

General information

PurposeVehicle
InstallationProfessional

Housing

Weight130 g (4.59 oz.)
Size65x61x26 mm (2.56x2.4x1.02 in)

GNSS Location

External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
External antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs7
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity230 mAh
Built-in batteryYes
Emergency buttonNo
Internal temperature sensorYes
Supported

Hardware extras

Fuel level sensor readingNo
Driver ID readingNo
Fuel temperature sensor readingNo

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
EACYes
