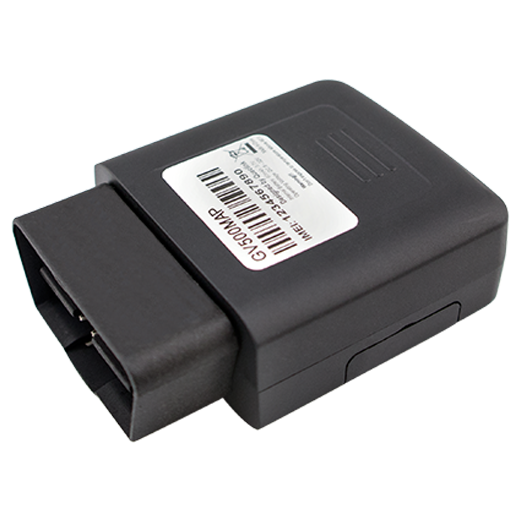

Queclink GV500MAP
The GV500MAP is a compact LTE product developed with OBDII port plug and play installation. Its unique auto tuning of GPS antenna design ensures best-in-class GPS performance for applications, including light truck tracking, breakdown assistance, dealer lot management and new driver monitoring. Widely validated in the US domestic vehicle market, the GV500MAP supports reliable standard vehicle data gathering of VIN, odometer and also diagnostic trouble codes (DTC) for vehicle maintenance applications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 58 g (2.05 oz.) |
| Size | 49.49x48.5x21.9 mm (1.95x1.91x0.86 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM/GPRS 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 60 mAh |
Interfaces
| Discrete inputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
