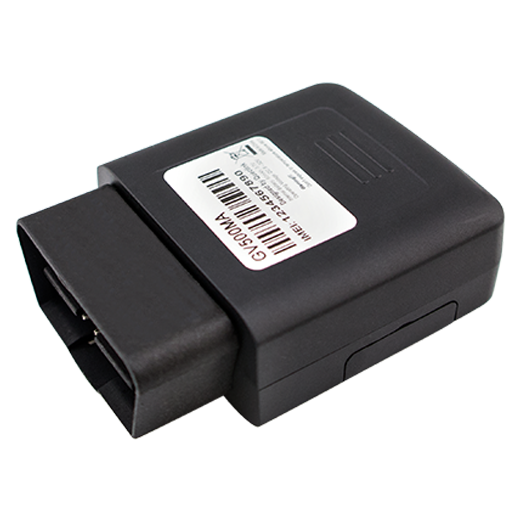

Queclink GV500MA
The GV500MA is an LTE dongle product developed with OBDII port plug and play installation. Its unique auto tuning of GPS antenna design ensures best-in-class GPS performance for application, including light truck tracking, breakdown assistance, dealer lot management and new driver monitoring.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 58 g (2.05 oz.) |
| Size | 49.49x48.5x21.9 mm (1.95x1.91x0.86 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 60 mAh |
Interfaces
| Discrete inputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
