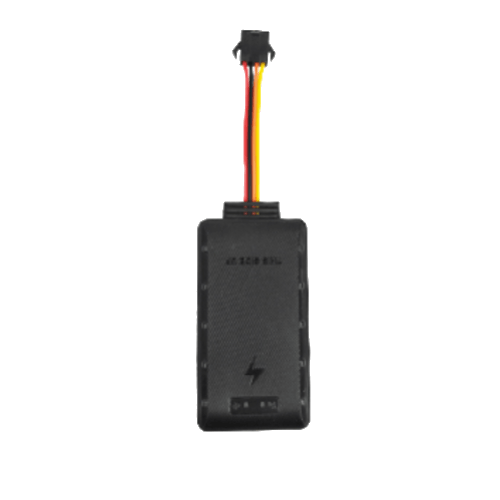

Kingwo IoT (Vodofo) MT100

Kingwo IoT (Vodofo) MT100 is a compact GPS Tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, scooters and motorcycles, the device itself supports 9-90 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect and Bluetooth function as well.

Show more

Location and tracking

  • Internal high gain antenna
  • Sensitivity:
    Tracking: -167 dBm
    Reacquisition: -161 dBm
    Cold starts : -149 dBm
  • Time to First Fix:
    Cold starts: 28s (typ.)
    Hot starts: <1s
    Warm starts: 22s
  • Horizontal position accuracy: <2.5M CEP

Mobile networks

  • Internal high gain antenna
  • Module: Simcom SIM868E
  • Quad-band 850/900/1800/1900MHz
  • GPRS multi-slot class 12/10
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+ –Class 4(2 W @ 850/900MHz) –Class 1 (1 W @ 1800/1900MHz)
  • GPRS class 12: max. 85.6 kbps (downlink/uplink) PBCCH support
  • Coding schemes CS 1, 2, 3, 4
  • PPP-stack
  • USSD
  • SIM card type: Micro SIM

Power supply

  • NI-MH AAA battery 3.6V/60mA
  • 1.5 Hours working time based on 2-3 minutes upload interval
  • External power supply 9 – 90 V DC

Inputs and outputs

  • 1 Discrete input
  • 1 Digital output

Environmental parameters

  • Working temperature: -20℃ ~ +70℃
  • Humidity: 5% ~ 95% (no fog)
  • Ingress protection rating: IP65

Other features

  • 2 LEDs, Green: GPS, Red: GSM
  • Internal memory: 1000 pcs
  • Support upload interval by time, distance and speed
  • Built in high sensitive G-sensor accelerometer
  • Built in light sensor for removal alarm
  • Driving behavior monitor
  • Dual IP supported
  • OTA for easier maintenance
  • Bluetooth for parameter setting and sensors connecting

Server connection

EU (
US (
Server port47648
Auto registrationYes

General information

Weight45 g (1.59 oz.)

Connectivity information

Network signal levelYes
Network operator IDYes

Location information

GNSS signal levelYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes


Remote outputs controlYes


Discrete inputs1
Number of outputs1
