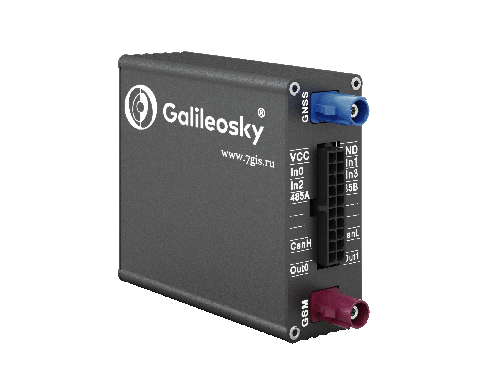

Galileosky Base Block

Galileosky Base Block is a compact and lightweight GPS/GLONASS vehicle tracker. It has 4 universal inputs that can be customized as analog, impulse or frequency ones. RS-485 interface and a possibility of connecting to CAN-bus of the vehicle make its range of functions very wide. Metal body and IP54 protection make it extremely durable.

Show more

Location and tracking

  • GPS, GLONASS
  • Continous tracking mode

Mobile networks

  • 2G

Power supply

  • Build-in battery 600 mAh

Inputs and outputs

  • 4 inputs
  • 2 outputs
  • 1-Wire
  • RS-485
  • External CAN Interface
  • USB 2.0

Other features

  • IP54 protection
  • Metal/plastic body
  • 2Mb internal memory
  • -40 … +85 C operating temperature
  • Chat via Garmin Navigator when connected to RS232

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47773
Auto registrationYes

General information

PurposeVehicle
Waterproof classIP54
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM 850/900/1800/1900
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes
Built-in batteryYes
Battery capacity600 mAh

Interfaces

Discrete inputs4
Number of outputs2
Analog sensorYes
Impulse counterYes
Frequency sensorYes
RS485 interfaceYes
1-Wire interfaceYes
