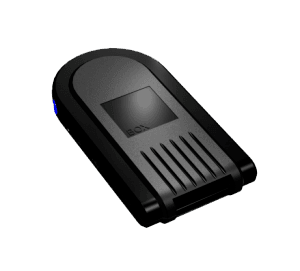

BOX Telematics BOX-tracker

BOX Telematics BOX-tracker

BOX Telematics BOXtracker 2

BOX Telematics BOXtracker 2

BOX-tracker uses the latest Quad band GPS/GPRS modem. BOX-tracker features numerous over-the-air configurable parameters giving you control of the tracker and remote configurability. Device has 6 inputs, which allow to control vehicle parameters, it is useful for fleet monitoring.

Show more

BOX-tracker uses the latest Quad band GPS/GPRS modem from Telit (http://www.telit.com) and is engineered for various sectors such as fleet and asset tracking industries. BOX-tracker features numerous over-the-air configurable parameters giving you control of the tracker and remote configurability. Data sent over GPRS is kept as small as possible keeping data costs to a minimum.

BOX-tracker used in conjunction with 3rd party application service providers (ASP Tracking Companies) will enable your end customer to manage their fleet and mobile resources via real-time information containing journey details, location, status and event reporting.

BOX-tracker is designed for vehicle tracking applications where external power is available and which may also have I/O requirements. It is available with either and internal or external GPS aerial and as a “Private Label” solution with branding and colour options available.

Location and tracking

  • GPS Support
  • Continuous tracking mode

Mobile networks

  • 900/1800/1900 MHz
  • 2G Network

Power supply

  • External power supply (9-30 V)

Inputs and outputs

  • 2 Digital inputs
  • 4 Analog outputs
  • 2 Difital outputs
  • RS232, 1-Wire

Other features

  • Emergency button
  • Remote management
  • RS232, 1-Wire

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47686
Auto registrationYes

General information

PurposeVehicle
Size135x70x21.5 mm (5.31x2.76x0.85 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs7
Number of outputs2
Analog sensorYes
1-Wire interfaceYes
