GPS device

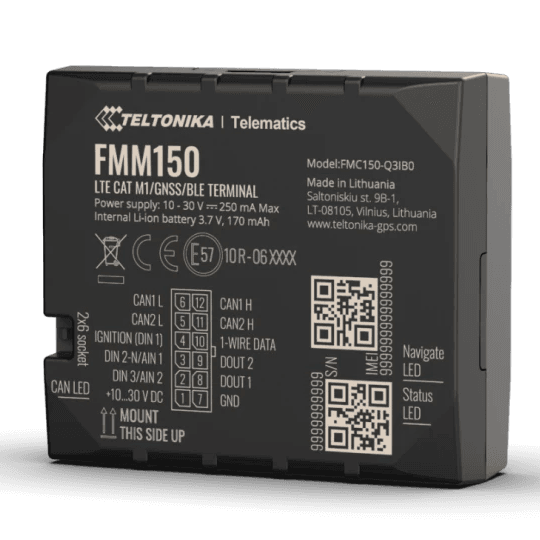

Teltonika FMM150

Teltonika Telematics FMM150 is advanced GPS tracker with integrated CAN BUS data reading chip for reading CAN data from light & electric vehicles, trucks, buses and special machinery. The device supports reliable global coverage with LTE Cat M1 and NB IoT connectivity support with fallback to 2G. It brings new value and expands usage scenarios with more than 40 supported vehicles in the EV market. FMM150 device also supports various sensors and scenarios such as green driving, over speeding detection, jamming detection, DOUT control via call, excessive idling detection and more. Additionally, various sleep modes are available for configuration as well as firmware update via FOTA WEB or Teltonika Configurator (USB/Bluetooth).

Start Free Trial Contact Sales

Server connection

EU platform	tracker.navixy.com (52.57.1.136)
US platform	tracker.us.navixy.com (13.52.37.2)
MENA platform	tracker.me.navixy.com (34.166.104.189)
Server port	47776
Auto registration	Yes

General information

Purpose	Vehicle
Weight	55 g
Size	•65x56 •6x20 •6 mm
Waterproof class	IP41
Internal antenna (GNSS)	Yes

Interfaces

Digital inputs	4
Number of outputs	2
Analog sensor	Yes

Features

Auto Registration	Yes
Obd	Yes
Board Voltage	Yes
Led Control	Yes
Location Request	Yes
Gprs Location Request	Yes
Odometer	Yes
Gsm Lbs	Yes
Gsm Signal Level	Yes
Motion sensor	Yes
Apn Settings	Yes
Hardware key	Yes
Hardware Key Attach Type	Yes
Custom Fields	Yes
Zero Battery Level	Yes
Altitude	Yes
Sim Card	Yes
Satellites	Yes
Gsm Roaming	Yes

State Fields

•Ble beacon id
•Ble magnet sensor 4
•Can abs state
•Can additional front fog lights
•Can additional rear lights
•Can air conditioning
•Can airbag state
•Can automatic retarder
•Can brake pad wear
•Can central diff 4hi locked
•Can central diff 4lo locked
•Can clutch state
•Can coolant temp or level
•Can cruise control
•Can dipped headlights
•Can door state
•Can electronics power control
•Can engine state
•Can eps state
•Can footbrake state
•Can front diff locked
•Can front fog lights
•Can front left door
•Can front passenger presence
•Can front right door
•Can full beam headlights
•Can glow plug indicator
•Can hand brake state
•Can hood state
•Can ignition state
•Can light signal
•Can lights failure
•Can low fuel
•Can low tire pressure
•Can manual retarder
•Can oil pressure or level
•Can parking lights
•Can ready to drive
•Can rear centre seat belt state
•Can rear diff locked
•Can rear fog lights
•Can rear left door
•Can rear left seat belt state
•Can rear right door
•Can rear right seat belt state
•Can roof state
•Can seat belt driver state
•Can seat belt passenger state
•Can trailer axle lift active 2
•Can trunk state
•Can warning
•Can webasto state
•Event code
•Hardware key
•Moving
•Obd dtc cleared distance
•Obd dtc codes
•Obd dtc number
•Obd mil activated distance
•Obd mil status
•Obd vin

Inputs and outputs

avl_io_100000	Yes
axis_x	Yes
axis_y	Yes
axis_z	Yes
battery_current	Yes
battery_voltage	Yes
board_voltage	Yes
can_adblue_level	Yes
can_axle_load_5	Yes
can_battery_level	Yes
can_battery_temperature	Yes
can_battery_voltage	Yes
can_consumption	Yes
can_consumption_relative	Yes
can_engine_hours	Yes
can_engine_hours_relative	Yes
can_engine_load	Yes
can_engine_oil_level	Yes
can_engine_temp	Yes
can_fuel_1	Yes
can_fuel_economy	Yes
can_fuel_litres	Yes
can_fuel_rate	Yes
can_mileage	Yes
can_mileage_relative	Yes
can_rpm	Yes
can_speed	Yes
can_throttle	Yes
ext_temp_sensor_4	Yes
hw_mileage	Yes
impulse_counter_2	Yes
obd_absolute_load_value	Yes
obd_barometric_pressure	Yes
obd_consumption	Yes
obd_control_module_voltage	Yes
obd_coolant_t	Yes
obd_custom_fuel_litres	Yes
obd_custom_odometer	Yes
obd_engine_load	Yes
obd_fuel	Yes
obd_intake_air_t	Yes
obd_mil_run_time	Yes
obd_oil_temperature	Yes
obd_rpm	Yes
obd_speed	Yes
obd_throttle	Yes
obd_time_since_engine_start	Yes
tacho_mileage	Yes
tacho_speed	Yes
