Payment gateway

Enable online payments via Stripe (webhooks and API keys) or connect a custom gateway using a payment URL.

With Navixy, you can provide your customers with online payment capabilities using Stripe or other popular systems.

Accepting payments with Stripe

You can easily integrate Stripe to automatically receive online payments from your customers.

Stripe is a global payment processor that supports more than 100 currencies and is available in over 30 countries. By integrating Stripe with Navixy, you can accept online payments using a range of methods, including bank cards (Visa, Mastercard, American Express), Google Pay, Apple Pay, Alipay, and many others.

To activate the Stripe integration, contact your account manager for assistance. Once activated, you will need to configure the following technical settings in your Stripe account:

1. If you don't have a Stripe account yet, create one at http://stripe.com.

2. Configure the methods you want to accept (e.g., bank cards, digital wallets) inside your Stripe dashboard.

3. Generate your API keys and add them to your Navixy account to enable communication between the platforms.

The instructions below guide you through the specific configuration required to integrate Navixy and Stripe.

How to set up Stripe webhook

1. Log in to the Stripe dashboard.

2. Navigate to Developers → Webhooks.

3. Click Add endpoint. Fill out the fields in the dialog box. The Endpoint URL depends on where your service is deployed (EU or US server). EU platform: https://saas.navixy.com/api-v2/external/payments/<PlatformID>/stripe US platform: https://saas.us.navixy.com/api-v2/external/payments/<PlatformID>/stripe Replace <PlatformID> with your specific platform ID. This is typically your panel number or the ID you use to log in to the Admin panel.

Filtering events

In the Select events to listen to (or Select types to send) section, select only the following 4 items:

1. charge.refunded

2. payment_intent.amount_capturable_updated

3. payment_intent.succeeded

4. payment_intent.payment_failed

Stripe API keys

You must provide your Stripe API keys to the Navixy support team to complete the integration.

Standard API keys

Navigate to Developers → API keys. Retrieve the following two parameters:

• Publishable key

• Secret key

Webhook signing secret

Navigate to Developers → Webhooks. Click on the webhook endpoint you just created. Under the Signing secret section, click Reveal to obtain the key:

• Signing secret

Once you have completed these steps, you will be ready to accept online payments.

Accepting payments with other methods

You can use practically any payment method by creating a custom script to receive online payments. Your script should be accessible via a URL and process payments by calling the Navixy Billing API.

User interface for custom payment methods

To set up a custom payment gateway:

1. Go to Service preferences in the Navixy Admin Panel settings.

2. Enter the payment system URL.

Your payment system will need to process the parameter /?id={id}.

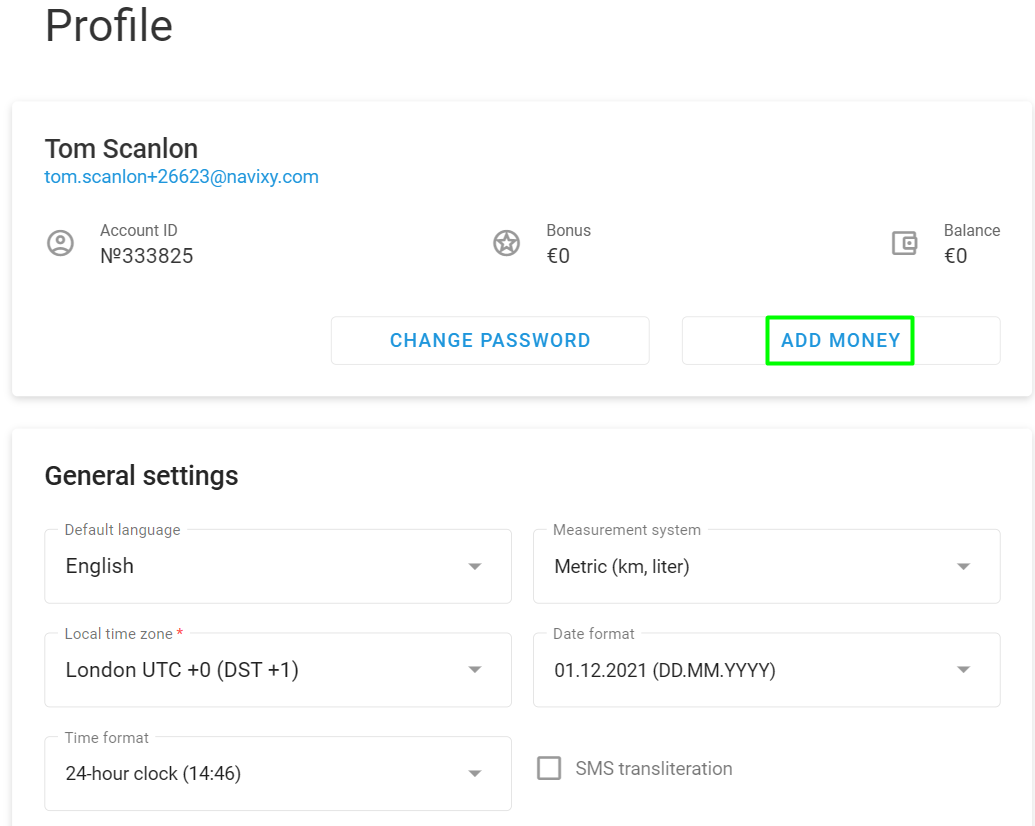

Once you have specified the Payment system URL in the Domain & URLs section of Service preferences, an Add money option will be enabled in the Profile section of the web platform:

Add money option
