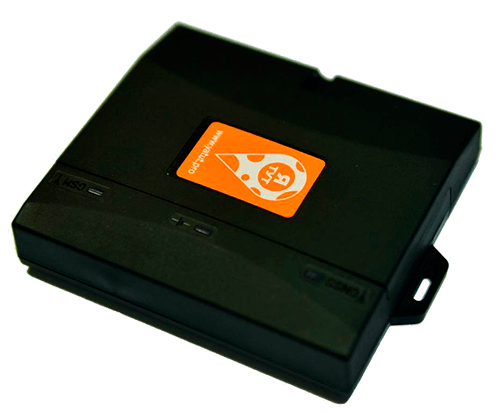

YA TUT 1.0
YA TUT 1.0 is an advanced GPS tracker for for tracking and monitoring vehicles location, speed, route, fuel level, mileage and other vehicles activity parameters. It has dual SIM-card slot, dust resistance (IP54), and a lot of useful features.
The package contents:
- GPS tracker
- External GSM Antenna
- External GPS/GLONASS Antenna
- Wire cables for A and B ports
- Mount kit
- Fuse with a holder
YA TUT 1.0 is an advanced GPS-tracker. It has a lot of features:
- Dual SIM cards – to optimize your mobile traffic charge
- 7 modes of work:
- and two modes of smart power consumption
- 3-axis accelerometer
- Internal CAN-module
Also it supports 1-Wire, RS232, RS485, iButton, that can be configured through its I/O
Location and tracking
YA TUT 1.0 supports both GPS and GLONASS. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Tracking modes in YA TUT 1.0 model has time/interval tracking. And additionally it supports direction variation tracks and distance interval tracks. Also it has an option for sms reports on time interval.
With Quad-band GSM 2G module YA TUT 1.0 can be operated all over the world.
External power supply might be 9-36V, which makes it possible to install YA TUT 1.0 both on cars and vans.
YA TUT 1.0 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).
Local and remote management
YA TUT 1.0 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Also it is fully configurable via USB cable using proprietary software.
YA TUT 1.0 has LED indication for GNSS and GSM status
|EU platform||tracker.navixy.com (184.108.40.206)|
|US platform||tracker.us.navixy.com (220.127.116.11)|
|Weight||70 g (2.47 oz.)|
|Size||110x75x20 mm (4.33x2.95x0.79 in)|
|Internal antenna (GNSS)||No|
|External antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||No|
|External antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of RS232 interfaces||1|
|Number of outputs||8|
|Number of inputs (all types)||8|
|Battery capacity||600 mAh|
|Engine block relay||Yes|
|Fuel level sensor reading||Yes|
|Driver ID reading||Yes|
|Fuel temperature sensor reading||Yes|
|Engine block special control||Yes|
|External temperature sensor reading||Yes|
|Fuel flow meter reading||Yes|
|Tracking modes||Interval, Continuous|
|Location by Cell ID||Yes|
|Smart power consumption||Yes|
|SIM card slot open||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|CAN/OBDII reader type||Internal|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Remote outputs control||Yes (over GPRS), Yes|
|Device ID type||Static (IMEI), Static|
|Firmware update OTA||No|
