Xirgo XT4850C

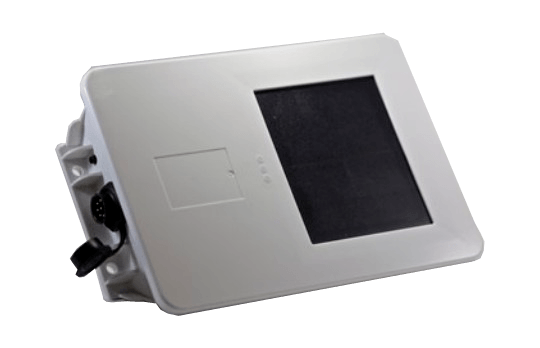

Xirgo XT-4850C is an energy harvesting device supporting long term, remote deployments without the need to replace the self -charging battery. XT-4850C utilizes a highly efficient solar cell to continuously charge and maximize operating life of the internal Lithium Ion battery.

Show more

Customers who require frequent data for location, health and monitoring of their remote assets can be assured that the XT-4850C will provide more frequent data for longer periods compared to other asset tracking devices in the market today.

Location and tracking

Xirgo XT4850C is embedded with GPS and doesn’t have support of GLONASS and alternative systems.

Designed to withstand various environmental factors, the XT-4850C is IP67 certified. With a fully sealed, protective case the device can be deployed in marine and desert environments.

Mobile networks

Xirgo XT4850C can be operated in CDMA netowrks, and is certified by such GSM carriers as Verizon and Sprint.

Features

Xirgo XT4850C has following features:

  • 1xRTT CDMA
  • CDMA Bands 800/1900 MHz
  • Integrated GPS receiver for tracking applications
  • Supports SMS , TCP, UDP, FTP, HTTP
  • Over-the-air application firmware upgrade
  • 8-pin circular bayonet connector with optional I/O’s
  • Configurable, periodic reporting to extend battery charge
  • 8 Mb Flash memory (upgrades available)
  • Accelerometer and motion sensor
  • Standard 10.6 Ah Lithium-Ion battery
  • 1-Wire® Bus
  • Zigbee®
  • AGPS Support

Optional Zigbee® transceiver, optional 1- Wire® Bus, and multiple inputs allow for interfacing with various sensors to further enhance the XT-4850C to be utilized in unique applications.

Power supply

External power supply might be 8-24V, which makes possible to use Xirgo XT4850C with all car models.

Xirgo XT4850C also features a built-in rechargeable 10600 mAh battery. When fully charged it ensures about 5-6 days of device operation (in normal conditions).

Local and remote management

Xirgo XT4850C can be configured and managed via SMS channel.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47716

General information

PurposeVehicle
InstallationProfessional

Housing

Weight241 g (8.5 oz.)
Size116.3x73.1x42.4 mm (4.58x2.88x1.67 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeCDMA2000 800/1900
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of outputs1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity10600 mAh
Built-in batteryYes

Tracking features

Tracking modesContinuous
OdometerYes
Supported
ECO drivingYes
On request

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
On request
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote device configurationYes (over SMS), Yes
Supported
Remote outputs controlYes (over SMS), Yes
Supported
Firmware update OTAYes
Forced GNSS location update over SMSYes
On request

Certification

FCCYes
