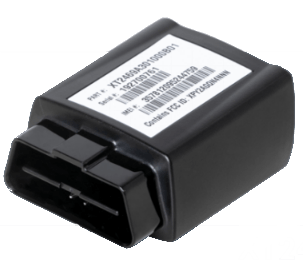

Xirgo XT2469

Xirgo XT2469 is a good solution for fleet managers in need of monitoring location, speed, and several other codes available on the OBD port of vehicles. It has an integrated GPS cellular and GPS antennas and integrated OBD-II interface.

Show more

Location and tracking

  • GPS
  • Continuous tracking mode

Mobile networks

  • 4G LTE Cat M1
  • 3G UMTS
  • 3GPP release 13

Power supply

  • Optional 250mAh Li-Ion battery
  • 8 – 18 V DC external power supply

Other features

  • LTE Cat M1
  • LED status indicators for GPS lock, GSM registration, and OBD-II communication
  • Over-the-air firmware upgrade
  • Supports SMS, UDP, FTP, HTTP
  • 3-axis accelerometer and motion detector
  • Integrated GPS receiver and antenna
  • Integrated dual-band cellular antenna
  • OBD-II:J1850 PWM,J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, ISO-15765 CAN
  • Certifications: FCC, AT&T1,4, Verizon2, Sprint3

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47654

General information

PurposeVehicle
Size59x46x28 mm (2.32x1.81x1.1 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Cellular network typeLTE 700/850/1700/1800/1900/2100/2600, GSM/UMTS
Cellular network generation3G, 4G, 2G

Location information

GNSS signal levelYes
GPSYes

Interfaces

CAN/OBDII reader typeInternal
