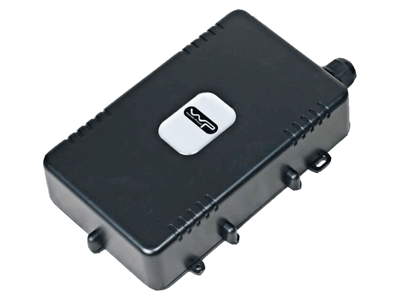

Wonde Proud TT1
Wonde Proud TT1 is an advanced GPS terminal with the smart power management. It is a suitable device for vehicle tracking.
Show more
It has a high-sensitivity GPS module with the GSM/GPRS connectivity.
This device can send a lot of different reports like towing, speeding or emergency alert and allow to establish a full control over the truck and the driver.
Server Integration
| EU platform | tracker.navixy.com (52.57.1.136) | |
| US platform | tracker.us.navixy.com (13.52.37.2) | |
| Server port | 47777 | |
| Integrated on | 15/02/2011 |
General information
| Purpose | Vehicle |
Housing
| Size | 190x115x50 mm (7.48x4.53x1.97 in) | |
| Waterproof class | IP6X |
Connectivity
| Cellular network type | GSM Quad Band | |
| Internal antenna (Connection) | No | |
| External antenna (Connection) | Yes |
Interfaces
| Number of outputs | 4 | |
| Number of inputs (all types) | 4 | |
| Discrete inputs | Yes | |
| Analog inputs | Yes | |
| Outputs | Yes |
Hardware features
| Battery capacity | 10400 mAh | |
| Built-in battery | Yes |
Self monitoring
| Network signal level | Yes | Supported |
| Network operator ID | Yes | Supported |
| Network roaming status | Yes | Supported |
| GNSS signal level | Yes | Supported |
| GNSS satellites fixed | Yes | Supported |
Remote management
| Server connection setup over SMS | Yes | Supported |
| Remote device configuration | Yes (over GPRS), Yes | |
| Remote outputs control | Yes (over GPRS), Yes | |
| Device ID type | Configurable | Supported |
| Forced LBS location update over GPRS | Yes | Supported |
| Forced GNSS location update over SMS | Yes | Supported |
