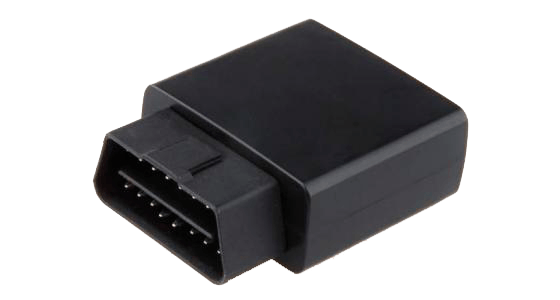

Ulbotech T361

Ulbotech T361 is a Vehicle GPS Tracker with OBD II (On-Board-Diagnostics) with SAE J1939 CAN functions.

Show more

Its built-in 3-axis accelerometer allows motion detection and extends backup battery life, and its GPS receiver have superior sensitivity and fast time to first track driver behavior detection such as cornering,hard braking,speed and location.

Location and tracking

Ulbotech T361 is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

With a highly sensitive GPS engine along with an integrated GPS antenna and multiple OBDII protocols supported, Ulbotech T361 can be installed in the majority of vehicles.

Mobile networks

The support of 2G GSM Quad-band network allows T361 location to be monitored in real time or periodically tracked by a backend server and mobile devices.

Features

Ulbotech T361 has following features:

  • OBD connectivity, simple to install, easy to use.
  • Quad band GSM modem, 850/900/1800/1900 MHz.
  • U-blox 6M GPS module with A-GPS.
  • Internal GSM/GPS antenna.
  • Internal Immobilizer for anti-theft.
  • Internal 3-axis accelerometer.
  • Supports all OBD protocols.
  • Supports SAE J1939 CANBUS protocol.
  • Support SAE J1708/J1587 protocol.
  • 8 types driver behavior detect.
  • Tracking by time, distance, course and status.
  • Geo-fence(Circle, Rectangular and Polygon).
  • FOTA(Firmware updating via GPRS from FTP server).
  • Auto APN identification.
  • Auto time zone identification.
  • Voice monitor.

Power supply

External power supply might be 8-32V, which makes possible to use Ulbotech T361 with all car models.

Local and remote management

Ulbotech T361 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47702

General information

PurposeVehicle
InstallationNot required
Special form factorOBDII Dongle

Housing

Weight55 g (1.94 oz.)
Size65x61x26 mm (2.56x2.4x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
ACC/Ignition inputYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity180 mAh
Built-in batteryYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other
Check engine lightYes
Supported
DTC codes readingYes
Supported

Remote management

Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
