TrackSystems Locus

TrackSystems Locus

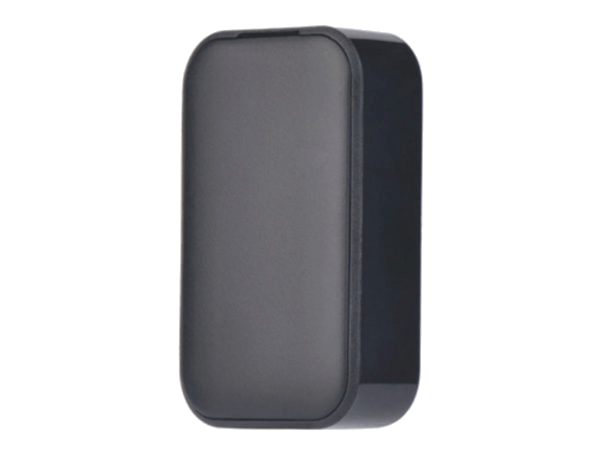

TrackSystems Locus is a GPS tracker for vehicle monitoring. It has a highly accurate GNSS receiver supporting three GNSS standards in parallel: GPS, GLONASS, and BeiDou

Show more

Location and tracking

  • GPS, GLONASS, Beidou
  • Continious tracking mode

Mobile networks

  • GSM 850/900/1800/1900
  • 2G / GPRS

Power supply

  • External power supply (9..30 V DC)

Inputs and outputs

  • 4 inputs (GPI1 – GPI4)
  • 2 open-collector outputs
  • 2 open-drain outputs
  • 1 parametric open-collector output

Other features

  • quad-band GSM/DCS modem, which works all over the world with any GSM compatible network
  • highly accurate GNSS receiver supporting three GNSS standards in parallel: GPS, GLONASS and BeiDou
  • storage for 4 million telemetry records (can be extended on user’s request)
  • wide power supply range, from 9V to 36V DC
  • basic car alarm functionality is available by default, with SMS notifications
  • a dedicated siren and ultrasound motion sensors can be connected seamlessly as additional alarm extension
  • a high-current relay which can be used as ignition circuit breaker
  • integrated EDLC-backed Real Time Clock, keeping the clock running for at least four days without external power supply
  • on-board 3-axis accelerometer for which can be utilized as collision or rollover detection
  • external GSM antenna with MMCX connector
  • external GNSS antenna with MMCX connector
  • optional support for 1-wire compatible sensors (like DS18B20)
  • CANbus interface
  • plugin-based mechanism for supporting various car models; plugins can be uploaded over-the-air
  • the user can operate the device via SMS only, without web-based tracking platform
  • transmission protocol supports authentication and encryption
  • optional panic button support
  • two analog inputs, which voltage is directly reported
  • four two-state inputs, which can be routed as any internal status flag, or reported directly
  • two configurable open-collector outputs
  • two configurable open-drain outputs with overvoltage protection
  • one parametric open-collector output dedicated for driving central locks
  • integrated buzzer
  • a simple user interface in form of an adapter with a button and an LED
  • over-the-air firmware update supported

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47675
Auto registrationYes

General information

PurposeVehicle

Connectivity information

Roaming statusYes
Cellular network typeGSM 850/900/1800/1900
Cellular network generation2G
Network operator IDYes

Location information

GNSS signal levelYes
GPSYes
GLONASSYes
BeidouYes

Features

Remote outputs controlYes
OdometerYes

Interfaces

Discrete inputs6
Number of outputs5
Analog sensorYes
1-Wire interfaceYes
CAN/OBDII reader typeYes
