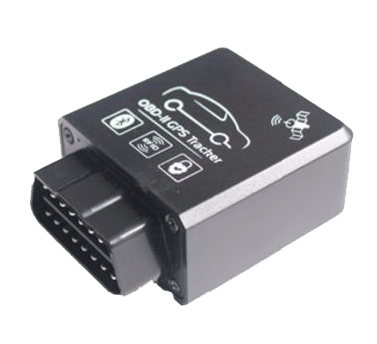

Topten TK228

TK228 is the combination of GPS Tracker + RFID Car Alarm + Remote/Bluetooth Diagnostics. It is is an advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.

Show more

TK228 is a multifunctional product. It is an integration of OBD-II GPS tracker, Remote/Bluetooth Diagnostics and wireless immobilizer. It has plug & play design, which is compatible with all the cars with OBD-II connector.

Features

  • Arm/disarm by SMS/phone call;
  • Anti-tamper alarm;
  • Built-in shock sensor;
  • Wireless immobilizer to stop the car in safe mode.

Package content

  • GPS tracker;
  • RFID tag;
  • Wireless immobilizer.

Location and tracking

TK228 tracking is based on GPS signals only. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in TK228 model are:

  • time/interval tracking
  • direction variation tracks
  • distance interval tracks

Mobile networks

With Quad-band GSM 3G/4G module TK228 can be operated all over the world.

Power supply

External power supply might be 9-45V, which makes it possible to install TK228 both on cars and vans. TK228 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Remote management

TK228 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED indication

TK228 has LED indication for GPS and GSM status.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47738

General information

PurposeVehicle
InstallationProfessional

Housing

Weight73 g (2.58 oz.)
Size54x51.5x28.5 mm (2.13x2.03x1.12 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
OutputsYes
Supported

Hardware extras

Driver ID readingYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Self monitoring

External power source voltageYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeYes
Supported
CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Device ID typeStatic (IMEI), Static
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
