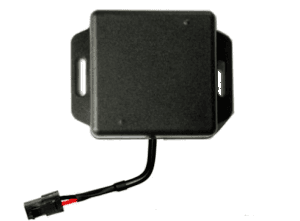

TopShine MT02

Supported features

Server Integration
Server Addresstracker.navixy.com
Server IP Address217.23.132.215
Server port47738
General information
PurposeVehicle
InstallationDIY
Housing
Weight55 g (1.94 oz.)
Size68x52x14 mm (2.68x2.05x0.55 in)
GNSS Location
Internal antenna (GNSS)Yes
GPSYes
Connectivity
Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G
Tracking features
Tracking modesContinuous
OdometerYes
On request
ECO drivingYes
Supported
Events monitoring
External power cut offYes
Supported
Self monitoring
GNSS signal levelYes
Supported
Remote management
Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported

How to connect to Navixy server

Automatic activation (recommended)

The software platform supports automatic device activation by applying APN settings, server address and port, as well as recommended tracking mode though the SMS channel. Normally you don’t need to configure anything manually. Just install the SIM card, switch the device ON and make sure it is located in the place with good GPS signal reception.

You also need to keep the device with initial factory settings, in particular:

  • Do not set any password, keep it clear (as by default)
  • Do not set any master number prior to the device activation
  • Do not set local Time zone, it must be UTC+0h (as by default)

Manual activation

In case automatic activation failed, you can try to register the device manually by sending following commands to the device:

W000000,011,<APN>,<APN name>,<APN password>
W000000,012,217.23.132.215,<port>,<port>
W000000,013,1

The <APN> parameters depend on your GSM carrier.

hex dump:
40400013690130205063104102000660460d0a
40400013645010346485124145006459e20d0a
