TopShine OGT100

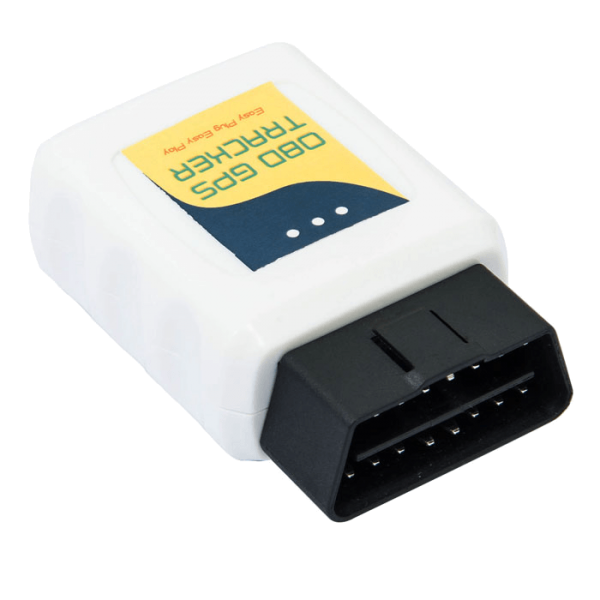

OGT100 is a miniature OBD GPS tracker with built-in antennas, which can be easily installed and will work out of the box.

Show more

Location and tracking

  • Navigation system: GPS
  • Tracking modes: Continuous and interval
  • LBS support: no

Mobile networks

  • Standard quad-band
  • Generation: 2G

Power supply

  • Input voltage 9-24 VDC

Inputs and outputs

  • OBD2 port

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47738

General information

PurposeVehicle
InstallationDIY

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Emergency buttonOptional
Supported

Tracking features

Tracking modesInterval, Continuous
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
