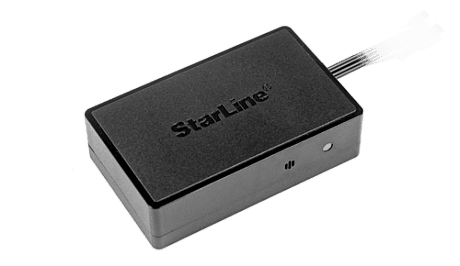

StarLine M17

StarLine M17 is a miniature tracking device which can be placed on any vehicle. The small size of the device allows you to quietly install it in the most unexpected and secretive places, where it will be very difficult to find it.

Show more

Packaging:

  • StarLine M17 device
  • External power cable
  • Lithium Battery CR123A (2 pcs.)
  • Warranty card
  • Quick start guide
  • User’s manual

Location and tracking

  • GPS Support
  • Continuous and interval tracking modes
  • LBS Support

Mobile networks

  • 900/1800 MHz
  • 2G Network

Power supply

  • External power supply (8-33V)

Inputs and outputs

  • 1 Digital input

Other features

  • Remote management

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47749

General information

PurposeVehicle
InstallationProfessional

Housing

Weight110 g (3.88 oz.)
Size85x52x23 mm (3.35x2.05x0.91 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM 900/1800
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)1
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Internal temperature sensorYes
Supported

Hardware extras

Voice communicationYes
On request

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Self monitoring

GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over SMS)
Supported
Forced GNSS location update over SMSYes
On request
