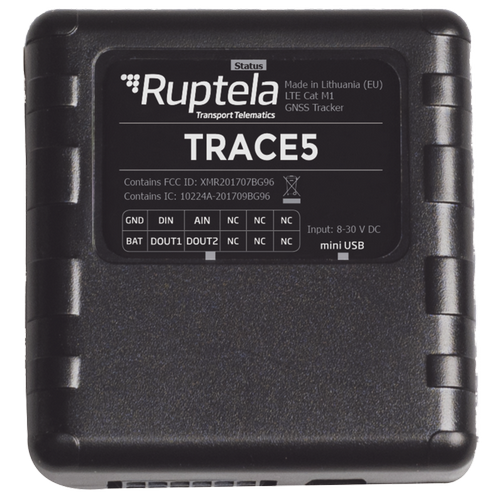

Ruptela Trace5

Ruptela Trace5 is a compact GNSS-based Automatic Vehicle Location (AVL) tracker with all essential features for vehicle tracking and fleet management. It is suitable for logistics, delivery, utility services, car rental and vehicle financing use cases. This GNSS tracker uses LTE Cat M1/NB2 (4G) connectivity with 2G fallback network and a premium GPS module from Ublox. IP67 version with rugged housing is also available which fully protects device from water, dirt and mechanical factors. The device can be installed outside the cabin (i.e. near the engine) and successfully operate.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • 4G (LTE CAT-M1) with 2G fallback connectivity

Power supply

  • Build-in battery LiPo 3.7 V 190 mAh
  • External power supply 8 – 30 V DC

Protection

  • IP67 housing (for TRACE5-LTM-IP67 model)

Inputs and outputs

  • 1 Digital input
  • 1 Analog input
  • 2 Digital outputs

Other features

  • Mini USB interface
  • RG indication LED
  • 3-axis accelerometer
  • 8 Mb internal storage

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47747

General information

PurposeVehicle
InstallationDIY

Housing

WeightRugged: 185 g (6.53 oz.), Regular: 70 g (2.47 oz.)
SizeRugged: 95x77x29 mm (3.74x3.03x1.14 in), Regular: 65x61x22 mm (2.56x2.4x0.87 in)
Waterproof classIP67 (for rugged version)

Interfaces

Number of outputs2
Number of inputs (all types)2
Discrete inputsYes
Supported
Analog inputsYes
On request

Hardware features

Battery capacity190 mAh
Built-in batteryYes
Supported
AccelerometerYes

Hardware extras

External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote outputs controlYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
On request
