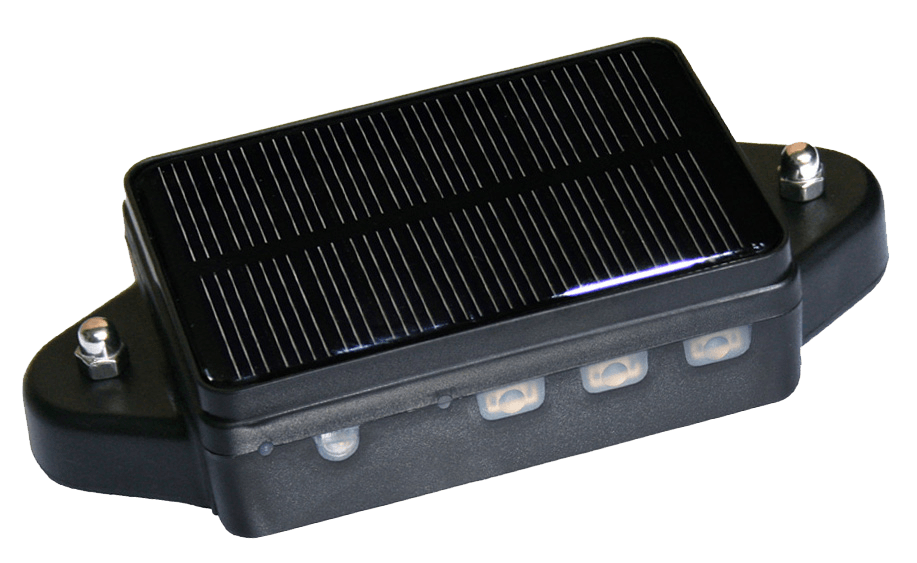

Carscop CCTR-808S

Carscop CCTR-808S is a simple and cost-effective GPS tracking device. It's main features are solar battery and huge backup battery, which is 4000 mAh. Device also has waterproof housing and magnet pins.

Показать больше

Package contents

The device is supplied in a cardboard box, which includes:

  • 1 main unit
  • 1 car charger
  • 1 12/24V DC adapter
  • 1 USB wire
  • and a manual.

Location and tracking

Carscop CCTR-808S is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

As the back-up, it uses Cell-ID (LBS) location technology.


The device has built-in SOS button, but it only activates SMS-message/calls to the pre-defined numbers.

Mobile networks

With Quad-band GSM 2G module Carscop CCTR-808S can be operated all over the world.

Power supply

Carscop CCTR-808S has a 12/24V adapter, which makes possible to use it with all car models.

CCTR-808S also features a built-in rechargeable backup battery of 4000 mAh capacity. When fully charged it ensures about 2 days of device operation (in normal conditions).

The device also features built-in solar battery. Place the tracker in the sunlight, and the solar battery will recharge the tracker automatically, in the long distance transport or longtime tracking please install the tracker in the place with sunlight, this can extend the battery working time, but it is impossible to finished fully charging only by solar power when working.

Note: The voltage of the charger must not be higher than 5.5V. High voltage will damage the tracker. Please use the OEM adapter, it needs 5-10 hours to charge the tracker fully. Place the tracker in the sunlight as far as possible and it will extend the battery working time observably.

Local and remote management

Carscop CCTR-808S tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Carscop CCTR-808S has one LED indicator (Green)

Подключение к серверу

Сервер (
Сервер (
Порт сервера6994

Общая информация

МонтажСделай сам


Вес230 g (8.11 oz.)
Размер130x59x28 mm (5.12x2.32x1.1 in)
Класс защиты от водыIP5X

Локация по GPS

Встроенная антенна (GPS)Да


Тип сотовой сетиGSM Quad Band
Внутренняя антенна (GSM)Да
Поколение сотовой сети2G

Аппаратные функции

Объем батареи4000 mAh
Встроенная батареяДа

Доп. инфо по оборудованию

Кнопка SOSДа

Функции отслеживания

Режим трекингаНепрерывный, Интервальный
Геолокация по LBSДа

Отслеживание событий

Низкий уровень заряда батареиДа
Датчик падения/вибрацииДа


Уровень GPS сигналаДа

Удалённое управление

Настройка подключения к серверу по SMSДа
Удалённая конфигурация устройстваДа (по GPRS), Да
Тип ID устройстваStatic (IMEI), Static
Формат обмена даннымиASCII
