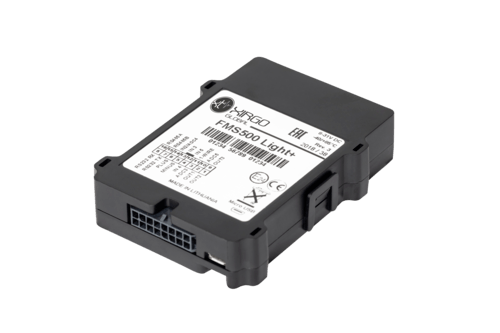

Xirgo Global FMS500 Light+
Xirgo Global FMS500 Light+ is advanced vehicle tracker with ignition monitoring, output control and jamming detection feature. Xirgo Global FMS500 Light+ is able to help you in driving quality monitoring by using car crash detections and Eco-driving. The device works in 8-31 V voltage range, supports RS-232 RS-485 and 1 wire interfaces. Xirgo Global FMS500 Light+ is the device with discrete/analog/impulse/frequency sensors connectivity and CAN interface connectivity. Also, Xirgo Global FMS500 Light+ tracker supports LBS and A-GPS technologies and has overvoltage protection.
Mostrar mais
Location and tracking
- GPS/GLONASS support
- Continuous interval tracking modes
- LBS support
Mobile networks
- 2G Network
Power supply
- Build-in battery 700mAh (optional)
- External power supply (8 – 31V)
Inputs and outputs
- 4 Digital inputs
- 3 Analog inputs
- 3 Digital outputs
Other features
- Eco-driving
- Car crash detection
- Internal antennas
- GSM jamming detection
- 1-Wire/RS-232/RS-485 Interfaces
- External CAN interface
Navixy implementation
Input mapping
- IN1 – movement sensor
- IN2, IN3, IN4 – input 2,3,4
- IN5 – input 1
- IN7 – input 5
- IN8 – event External power
- IN9 – event GSM Damp
- IN13/IN15 – event Carsh alarm
- IN16 – event GPS-antenna
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 47727 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Tamanho | 68x91x19 mm (2.68x3.58x0.75 in) |
| Antena interna (GNSS) | Yes |
| Antena interna (Conexão) | Yes |
Conectividade
| Nível do sinal | Sim |
| ID do operador | Sim |
| Tipo de rede celular | GSM Quad Band |
| Geração de rede celular | 2G |
Informações de localização
| Nível de sinal GNSS | Sim |
| LBS | Sim |
| GPS | Yes |
| GLONASS | Yes |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Acelerômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 5 |
| Número de saídas | 3 |
| Sensor analógico | Sim |
| Sensor de frequência | Sim |
| Interface RS485 | Yes |
| Interface 1-Wire | Yes |
| Tipo de leitor CAN/OBDII | External |
Campos de entrada
Campos de status
Monitoramento de eventos
