Novacom GNS-GLONASS 4.7

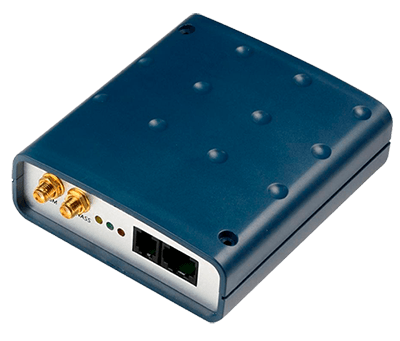

Novacom GNS-GLONASS 4.7 is an advanced AVL terminal that can be used in fleet management. Using this device a consumer can control a vehicle status and location.

Show more

It is equipped with internal and external GPS/GLONASS and GSM antennas. The device has a lot of inputs (up to 7) and outputs (up to 4) including RS232 and 1-wire interface.

It has special features like advanced overspeed alarm and a voice communication module.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47753
Integrated on12/09/2013

General information

PurposeVehicle
InstallationProfessional

Housing

Peso195 g (6.88 oz.)
Tamanho102x90x35 mm (4.02x3.54x1.38 in)

GNSS Location

Antena interna (GNSS)Yes
Antena externa (GNSS)Yes

Connectivity

Tipo de rede celularGSM 850/1900
Antena interna (Conexão)Yes
Antena externa (Conexão)Yes

Interfaces

Number of RS232 interfaces1
Number of outputs4
Number of inputs (all types)7
Discrete inputsYes
Supported
Analog inputsYes
Supported
Interface RS232Yes
Interface 1-WireYes

Hardware features

Capacidade da bateria1600 mAh
Bateria integradaYes

Hardware extras

Driver ID readingYes
Supported

Events monitoring

Input changeYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

Tipo de leitor CAN/OBDIIYes
Supported
CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS), Yes

More from Novacom

Activate a device on the platform Try it now
Haven’t found your device? We can add it Integrate
