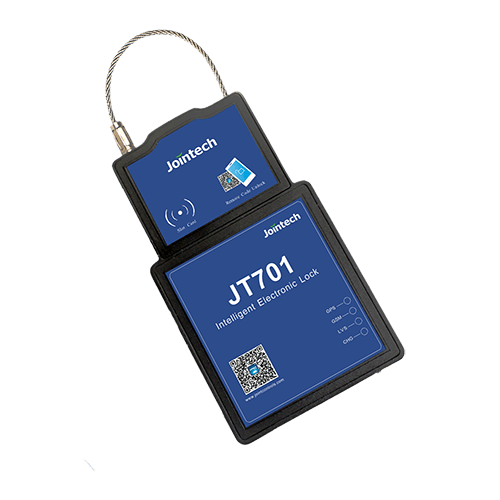

Jointech JT701

JT701 is a intelligent tracking lock device for asset management system. The main feature can be listed as: Designed to unlock by RFID/remote password instead of key; Big capacity battery, long working time; Built-in wireless module, real time online monitoring; Built-in GPS module; Safety control, illegal unlock alarm and so on. The device can be used for tracking containers, trailers, vans and other types of trucks.

Show more

Location and tracking

Built-in GPS module supporting both continuous and interval tracking. In the interval mode the device is in sleeping mode most of the time, and wakes only when needed (the vibration is detected, SMS, phone call, RFID event, or by timer). This allows for a long battery life, fitting for stationary assets security.
The device also support LBS, but only by one BTS (Base Transciever Station).

Mobile networks

Supported GSM frequency: 900/1800/1900 Mhz
3G is not supported

Power supply

The device features a built-in 12000 mAh lithium battery, that allows for a long working time.

RFID/SMS unlock

The device is designed as a security lock, and can be unlocked with RFID token or SMS password. The device also can send alarms when tampering or unauthorized unlocking is detected.

Server Integration

EU (
US (
Server port47703


Peso700 g (24.69 oz.)
Tamanho195x114x37 mm (7.68x4.49x1.46 in)

GNSS Location

Antena interna (GNSS)Yes


Antena interna (Conexão)Yes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes

Events monitoring

Battery lowYes

Self monitoring

Network signal levelYes
ID do operadorYes
GNSS signal levelYes
Internal battery levelYes

Remote management

Server connection setup over SMSYes
Remote device configurationYes (over GPRS)
