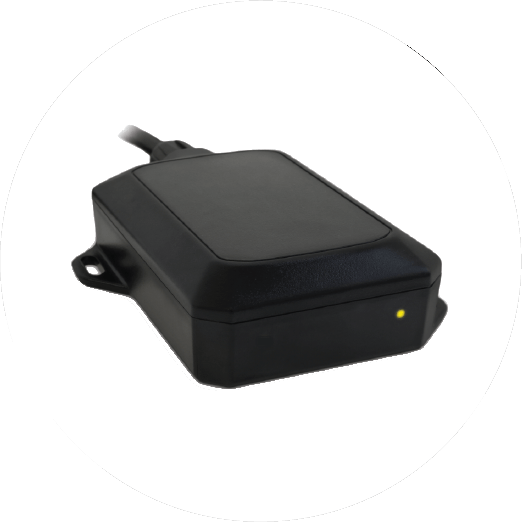

Syrus Cloud Connect 3G (SL3G-1645)

SYRUS 3G SL-1645 is an intelligent tracking hub with Expanded Interoperability for Fleet Automation. This unit has both: 2G Quad-band & 3G Penta-band GSM/GPRS modules with superior GPS sensitivity. It has all the functionalities and features of previous SL series devices and its key features include: motion, shock and aggressive driving detection, acceleration backlog, ultra low power consumption, and outstanding accessories compatibility.

Show more

Location and tracking

Syrus Cloud Connect 3G (SL3G-1645) is embedded with GPS and 3G chips. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

Quad-band GSM module makes devise usable all over the world where 2G networks are supported.

UMTS/HSPA+ is supported.

Features

Key features of the SL3G-1645 device are:

  • Intelligent configurable event engine, easy setup, reports up to 3 different actions per event.
  • Turn by turn reports to guarantee the best possible tracking resolution.
  • Motion detector, shock, and aggressive driving detection
  • Molex automotive type connector.
  • TCP and/or UDP and/or SMS/SMPP communication protocols supporting up to 5 different IP or DNS destination servers and up to five SMS telephone Numbers.
  • Binary and/or ASCII GPS protocols.
  • Full audio/voice port for two-way communication.
  • Store and forward: 7.200 events.

Interfaces

SL3G-1645 is equipped with multiple inputs and outputs.

Offering 3 inputs, 1 ignition input, 1 ADC input, 1 one-wire input, and 2 outputs, makes it ideal to control, manage and monitor fuel sensors, doors, panic buttons, vehicle immobilizer, siren, lights, driver identification with Dallas keys or any other compatible telematics application.

Also, it has serial port RS232 (DB9) for easy integration with any external device like mobile data terminals, barcode scanners, satellite modems or RFID tag readers.

Power supply

The external power supply range might be 8V – 32V, which makes it possible to install Syrus 2G both on cars and vans.

DCT Syrus 2G also features an internal backup battery (380 mAh) that allows up to 6 hours of device work.

The manufacturer also claims reverse polarity protection and thermal shutdown for enhanced battery life, as well as automatic power saving mode based on the status of the ignition input and motion detector.

Local and remote management

SL3G-1645 tracker is fully configurable over the network via GPRS and/or SMS commands. Also, operational firmware can be upgraded over the air (FOTA), as well as over the RS232 port.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47732
Integrated on06/11/2021

General information

PurposeVehicle
InstallationProfessional

Housing

Weight159 g (5.61 oz.)
Size99x93x31 mm (3.9x3.66x1.22 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeUMTS/HSPA 850/1900, GSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces1
Number of outputs2
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity250 mAh
Built-in batteryYes
AccelerometerYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
Input changeYes
Supported
Device switched on/offYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Remote outputs controlYes (over GPRS), Yes
Firmware update OTAYes

Certification

CEYes
FCCYes
