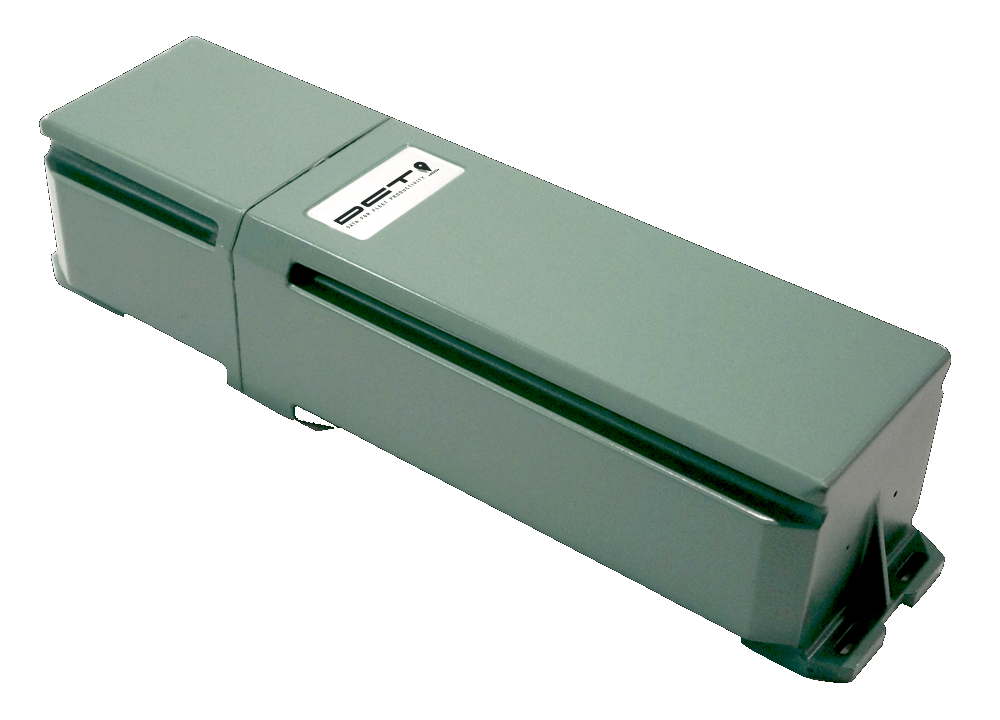

Syrus 2G Trailer Tracker (STT-4313)

Mais de Digital Communications Technologies

Rechargeable battery operated asset 2G tracking device designed for prolonged remote monitoring with advanced functionalities. Provisioned with global, multi-carrier wireless connectivity and OTA configuration management.

Mostrar mais

Location and tracking

Syrus 2G Trailer Tracker is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

Quad-band GSM module makes devise usable all over the world where 2G networks are supported.

Features

Key features of the STT-4313 device are:

  • Intelligent configurable event engine, easy setup, reports up to 3 different actions per event.
  • Turn by turn reports to guarantee the best possible tracking resolution.
  • Motion detector, shock, and aggressive driving detection
  • Molex automotive type connector.
  • TCP and/or UDP and/or SMS/SMPP communication protocols supporting up to 5 different IP or DNS destination servers and up to five SMS telephone Numbers.
  • Binary and/or ASCII GPS protocols.
  • Full audio/voice port for two-way communication.
  • Store and forward: 7.200 events.

Interfaces

STT-4313 is equipped with multiple inputs and outputs.

Offering 3 inputs, 1 ignition input, 1 ADC input, 1 one-wire input, and 2 outputs, makes it ideal to control, manage and monitor fuel sensors, doors, panic buttons, vehicle immobilizer, siren, lights, driver identification with Dallas keys or any other compatible telematics application.

Also, it has serial port RS232 (DB9) for easy integration with any external device like mobile data terminals, barcode scanners, satellite modems or RFID tag readers.

Power supply

The external power supply range might be 8V – 32V, which makes it possible to install Syrus 2G both on cars and vans.

STT-4313 also features an internal backup battery (250 mAh) that allows up to 6 hours of device work.

The manufacturer also claims reverse polarity protection and thermal shutdown for enhanced battery life, as well as automatic power saving mode based on the status of the ignition input and motion detector.

Local and remote management

STT-4313 tracker is fully configurable over the network via GPRS and/or SMS commands. Also, operational firmware can be upgraded over the air (FOTA), as well as over the RS232 port.


Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47732
Auto cadastroSim

Informação geral

PropósitoVeículo
Peso159 g (5.61 oz.)
Tamanho99x93x31 mm (3.9x3.66x1.22 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes

Conectividade

Nível do sinalSim
Tipo de rede celularUMTS/HSPA 850/1900, GSM Quad Band
Geração de rede celular3G, 2G

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo GNSS em preferência ao GPRSSim
Localização GNSS forçada em preferência ao SMSSim
Localização forçada pelo LBS em preferência ao GPRSSim
GPSYes

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
Leitura de ID do motoristaSim
Bateria integradaYes
Capacidade da bateria250 mAh

Interfaces

Entradas digitais8
Número de saídas6
Sensor analógicoSim
Interface 1-WireYes
