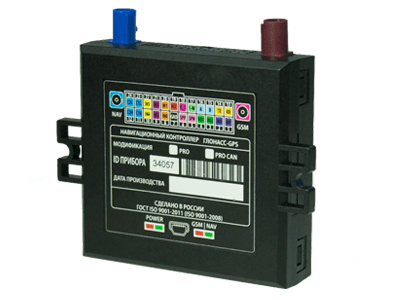

Arusnavi Arnavi

Arusnavi Arnavi is a universal vehicle location device that work with GPS, GLONASS, Galileo and Beidou networks. It has internal and external GNSS and GPRS antennas. It is designed for advanced fleet management.

Show more

This device has a multiple interfaces like RS232, RS485 and 1-wire that makes these devices absolutely flexible for the consumer’s needs.

It has built-in battery and wide options to secure and control the vehicle systems.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47739
Integrated on05/02/2015

General information

PurposeVehicle
Additional information about PurposeHere will be an additional information for current category
InstallationProfessional

Housing

Peso250 g (8.82 oz.)
Tamanho74x69x22 mm (2.91x2.72x0.87 in), 74_69_22 mm (2.91x2.72x0.87 in)

GNSS Location

Antena interna (GNSS)Yes
Antena externa (GNSS)Yes

Connectivity

Tipo de rede celularGSM Quad Band
Antena interna (Conexão)Yes
Antena externa (Conexão)Yes

Interfaces

Number of RS232 interfaces1
Number of outputs2
Number of inputs (all types)6
Additional information about InterfacesInformation about discrete inputs change is sent simultaneously with tracking data only. Thus status change won't be detected immediately on the tracking server side.
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
Interface RS232Yes
Interface RS485Yes
Interface 1-WireYes
OutputsYes
Supported

Hardware features

Capacidade da bateria800 mAh
Bateria integradaYes

Hardware extras

Driver ID readingYes
Supported

Events monitoring

Input changeYes
Supported

Self monitoring

GNSS signal levelYes
Supported

CAN/OBDII reading

Tipo de leitor CAN/OBDIINo

Remote management

Remote device configurationYes (over SMS), Yes
Remote outputs controlYes (over SMS), Yes
