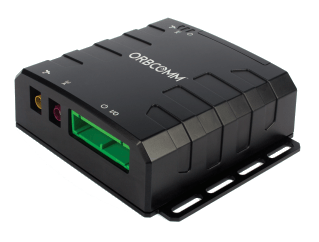

ORBCOMM IDP-782

More from Orbcomm

ORBCOMM IDP-782

ORBCOMM IDP-782

Cellular and satellite cellular terminals for fleet management applications. The fully programmable, feature-rich IDP-782 delivers connectivity to assets over cellular and satellite networks. IDP-782 can be used in security applications to track vehicle location, driver behavior, text messaging, e-forms, and more. This device can also be used in SCADA applications to monitor and control fixed oil and gas equipment.

Show more

Location and tracking

  • GPS
  • Interval tracking modes

Mobile networks

  •  850/900/1800/1900 MHz GSM
  • 800/850/900/1900/2100 MHz WCDMA

Power supply

  • Build-in battery (>12 hours operation with 1-minute cellular
    reporting or 10-minute satellite reporting)
  • External power supply (9 to 32V; load dump protection: +150V;
    SAE J1455)

Inputs and outputs

  • Inputs/outputs: 4 x config. Analog/digital inputs/outputs
  • 2 x dedicated outputs (sink-ground)
  • Serial: 2 x RS-232; 1 x RS-485; 1-CAN bus; 1-Wire
  • Accelerometer: 3 axis

Other features

  • Local and remote management
  • LED indication
  • Accessories

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)

General information

PurposeVehicle
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Cellular network typeWCDMA 800/850/900/1900/2100, GSM 850/900/1800/1900
Cellular network generation3G, 2G

Location information

Forced GNSS location update over GPRSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes

Interfaces

Discrete inputs5
Number of outputs6
Analog sensorYes
RS485 interfaceYes
1-Wire interfaceYes
