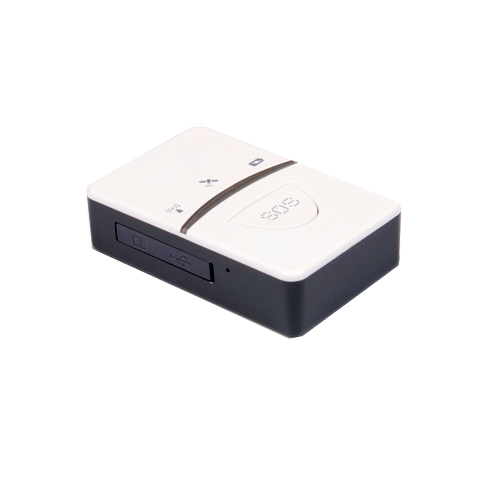

Opekun U3

Opekun U3 is a portable personal GPS tracker with low power consumption. Working based on existing GSM /GPRS network and GPS satellites, this small and powerful tracking device is developed for human, vehicle and pet etc. Not only transmit the longitude and latitude coordinate to your cell phone by SMS, but also transmitting the longitude and latitude coordinate to the designated server by GPRS.

Show more

Package contents

The standard package of Opekun U3 contains the device itself, neck rope and the multi-functional cable.

Location and tracking

Opekun U3 has only GPS support, and it doesn’t support GLONASS and alternative systems. It supports Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile network

With Quad-band GSM 2G module Opekun U3 can be operated all over the world.

Power supply

Device contains a 1200 mAh battery. It is claimed that battery can last for 9-10 hours of work in normal conditions.

Features

The main features of Opekun U3 device are:

  • SOS alert
  • Monitoring function
  • Timing position
  • Real-time positioning
  • Built-in high capacity battery
  • Low voltage alert
  • Track by SMS/GPRS
  • Geo-fence alert
  • Low energy consumption
  • Long standby time​

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47721
Integrated on10/03/2016

General information

PurposePet, Personal
InstallationNot required

Housing

Weight48 g (1.69 oz.)
Size63x40x16.5 mm (2.48x1.57x0.65 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity1200 mAh
Built-in batteryYes
Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported

Events monitoring

Battery lowYes
Supported
Device switched on/offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSNo

Certification

CEYes
FCCYes
EACYes
