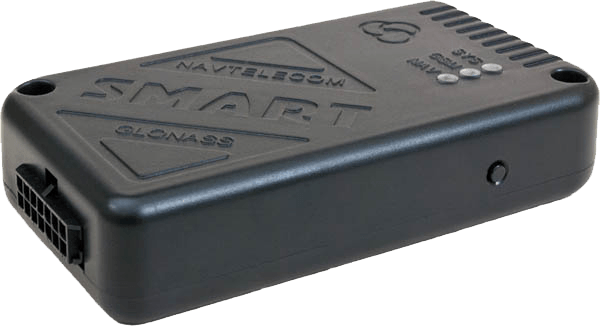

Navtelecom Smart S-2433

Navtelecom SMART S-2433 is a simple and cost effective GPS/GLONASS monitoring solution, which has RS-232, RS-485 and 1-Wire inputs.

Show more

Package contents

Package contents include:

  • Device
  • 14-pin cable (harness) type Microfit-14
  • Interface cable with a MiniUSB connector
  • User manual
  • Packaging

Location and tracking

Navtelecom SMART S-2433 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.

Mobile networks

With Quad-band GSM 2G module Navtelecom SMART S-2433 can be operated all over the world.

Power supply

External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install it both on cars and vans.

S-2433 also features built-in rechargeable backup battery of varied capacity starting from 110 mAh.

Local and remote management

Navtelecom SMART S-2433 supports configuration via both GPRS and SMS channels as well as OTF firmware update.

Features

Navtelecom SMART S-2433 has following features:

  • Real Time Tracking
  • EcoDriving
  • Fuel level reading
  • Remote outputs control
  • The support of FLEX-protocol for traffic economy
  • 1-wire
  • RS-485 and RS-232 sensors
  • EGTS Protocol support
  • Internal battery

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47709
Auto registrationYes

General information

PurposeVehicle
Size102х57х22 mm (4.02x2.24x0.87 in)
Waterproof classIP5X
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes
Battery capacity130+ mAh

Interfaces

Discrete inputs3
Number of outputs2
Analog sensorYes
Impulse counterYes
Frequency sensorYes
RS485 interfaceYes
1-Wire interfaceYes
CAN/OBDII reader typeYes
