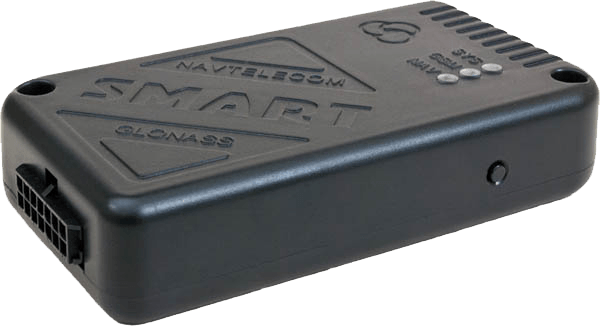

Navtelecom Smart S-2332

Navtelecom SMART S-2332 is a GPS/GLONASS monitoring unit, which has RS-232, RS-485 and 1-wire input. The device is able to read CAN-data with the help of CAN-LOG or CANTEC adapters. S-2332 has a built-in battery and a microphone.

Show more

Package contents

Package contents include:

  • Device
  • 14-pin cable (harness) type Microfit-14
  • Interface cable with a MiniUSB connector
  • CD with software and documentation
  • User manual
  • Packaging

Location and tracking

Navtelecom SMART S-2332 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.

Mobile networks

With Quad-band GSM 2G module Navtelecom SMART S-2332 can be operated all over the world.

Power supply

External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2332 both on cars and vans.

S-2332 also features built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Local and remote management

Navtelecom SMART S-2332 can not be controlled over GPRS, the configuration should be made by using special software “NTC Configurator”.

Features

Navtelecom SMART S-2332 has following features:

  • Real Time Tracking
  • Fuel level reading
  • Remote outputs control
  • The support of FLEX-protocol for traffic economy
  • 1-wire
  • CAN-data reading
  • RS-485 sensor
  • RS-232 sensor
  • EGTS Protocol support
  • Internal battery

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47709
Auto registrationYes

General information

PurposeVehicle
Size102х57х22 mm (4.02x2.24x0.87 in)
Waterproof classIP5X
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes
Battery capacity1050 mAh

Interfaces

Discrete inputs5
Number of outputs2
Analog sensorYes
Impulse counterYes
Frequency sensorYes
RS485 interfaceYes
1-Wire interfaceYes
CAN/OBDII reader typeYes
