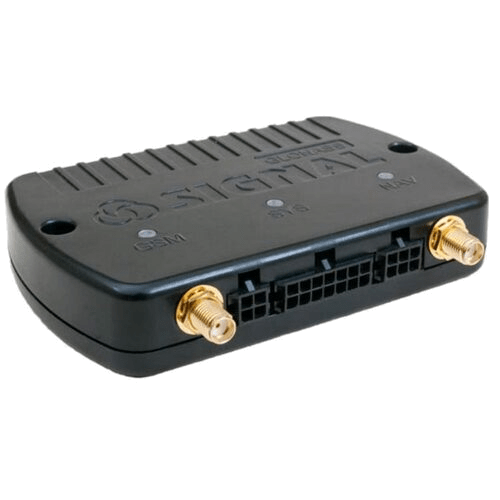

Navtelecom Signal S-2654

Navtelecom Signal S-2654 is an advanced vehicle tracking device that will allow you to process telemetry data and monitor driver behavior.

Show more

Navtelecom Signal S-2654 is an advanced vehicle tracking device. Apart from providing accurate location data, various interfaces allow connecting a variety of sensors to process and report telemetry data. Device is highly configurable and 6 inputs can be changed to process analog, discrete and frequency data.

Device also allows you to monitor driver behavior. Driver ID feature will allow you to track – who was behind the wheel at all times and our advanced Eco driving report and alerting system will let know about violations like speeding, harsh braking and idling.

Internal battery provides around 6 hours of operation on full charge is device reports once a minute.

Location and tracking

  • GPS, GLONASS, Galileo, QZSS
  • Interval tracking mode (by time, distance, angle)

Mobile networks

  • GSM 850, EGSM 900, DCS 1800, PCS 1900
  • 2 SIM card slots (mini and nano SIM)

Power supply

  • External power supply 9,5…47 V DC
  • Build-in battery LiPo 3.7 V, no less than 800 mAh
  • USB battery charger


  • Battery and a 1-Wire power line short circuit protection
  • Reverse polarity protection
  • Electrostatic discharge protection on USB, SIM card slot and 1-Wire data line
  • Overcurrent protection on a 1-Wire power line and digital outputs
  • Overvoltage protection on analog inputs
  • Charging protection

Inputs and outputs

  • 6 universal inputs (can be digital, analog or frequency)
  • 4 Digital outputs
  • 1 RS232
  • 1 RS485
  • CAN interface
  • 1-Wire

Other features

  • 8 MB memory
  • MicroSD card support (can store up to 2 000 000 telemetry points)
  • Bluetooth 4.0
  • Accelerometer
  • Eco driving
  • Ip54 protection
  • Driver registration and identification

Server connection

EU (
US (
Server port47709
Auto registrationYes

General information

Weight87 g (3.07 oz.)

Connectivity information

Network signal levelYes
Network operator IDYes

Location information

GNSS signal levelYes


Remote outputs controlYes
Hardware keyYes


Discrete inputs6
Number of outputs4
Analog sensorYes
Frequency sensorYes
