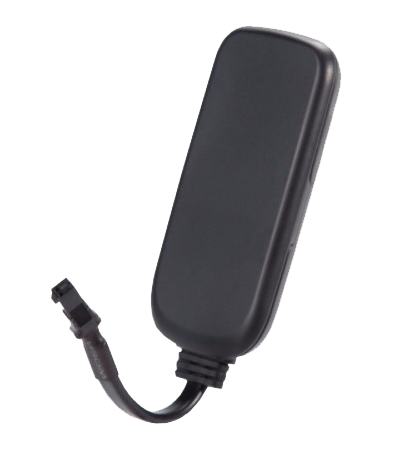

Lacak X1

Lacak X1 is vehicle GPS tracker with a wide range of options to prevent the car stealing. It is suitable for personal use and fleet management when remote control of the vehicle is the most important.

Show more

Package contents

Lacak X1 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • User Manual

Location and tracking

Lacak X1 is embedded with GPS, it doesn’t support GLONASS or alternative systems.

The tracking mode, which is supported by device, is tracking by time interval.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Lacak X1 has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

X1 features a rechargeable 450 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).

Local and remote management

X1 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Lacak X1 has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeVehicle
InstallationProfessional

Housing

Weight96 g (3.39 oz.)
Size90x52x15 mm (3.54x2.05x0.59 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity450 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported
AccelerometerYes

Hardware extras

Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

External power cut offYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
