Kingwo IoT (Vodofo) MT02

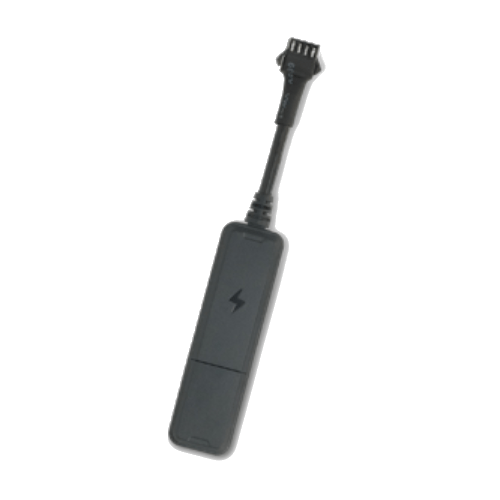

MT02 is a compact GPS Tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for motorcycles, cars, vehicles and scooters, the device itself supports 9-100 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect.

Show more

Location and tracking

  • Internal high gain antenna
  • Sensitivity: -147dBm
  • Time to First Fix:
    Cold start: 27 s
    Hot start: <1s
  • Position accuracy: 5-10m
  • LBS and AGPS Positioning

Mobile networks

  • Internal high gain antenna
  • Module: Fibocom G500-GL
  • Quad-band 850/900/1800/1900 MHz
  • Sensitivity:
    [email protected]/900 MHz
    [email protected]/1900 MHz
  • Output power:
    Class 4 (2W) @850/900 MHz
    Class 1 (1W) @1800/1900 MHz
  • Network protocol: Embedded TCP/IP stack
  • GPRS class 10
  • GPRS mobile station class B
  • SIM card type: Micro SIM

Power supply

  • NI-MH AAA battery 3.6 V / 110 mA
  • 2 Hours working time based on 2-3 minutes upload interval
  • External power supply 9 – 100 V DC

Inputs and outputs

  • 1 Discrete input
  • 1 Digital output

Environmental parameters

  • Working temperature: -20 ℃ ~ +70 ℃
  • Humidity: 5% ~ 95% (no fog)
  • Ingress protection rating: IP65

Other features

  • 2 LEDs, Green: GPS, Red: GSM
  • Internal memory: 1300 pcs
  • Support upload interval by time, distance and speed
  • Built in high sensitive G-sensor accelerometer
  • Flip over alarm
  • Towing alarm
  • Remote power and fuel cut off (Relay required)
  • Driving behavior including hard declaration, acceleration, speeding, sharp turn, collision
  • Dual IP supported (Main server and backup server)
  • OTA for easier maintenance
  • Low voltage and main power cut off alarm
  • GT06N and Kingwo protocol
  • Mileage statistics

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47648
Auto registrationYes

General information

PurposeVehicle
Weight26 g (0.92 oz.)

Connectivity information

Network signal levelYes
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes

Features

Remote outputs controlYes
OdometerYes

Interfaces

Discrete inputs1
Number of outputs1
