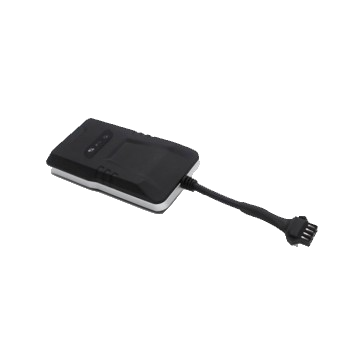

JamTrack JM04

JamTrack JM04 is a lowcost vehicle tracker, which has a basic functionality and also easy to use. This tracker allows to control engine by using blocking relay, which can be connected to device output. JamTrack JM04 supports 2G network, which is widely supported in the world.

Show more

Location and tracking

  • Continuous tracking mode
  • LBS Support

Power supply

  • External power supply (12-24V)

Mobile networks

  • 2G Network
  • 850/900/1800/1900 Mhz

Inputs and outputs

  • 1 Discrete input
  • 1 Output

Other features

  • Remote management
  • LED indication

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47735

General information

PurposeVehicle
InstallationProfessional

Housing

Weight50 g (1.76 oz.)
Size84x47.5x15 mm (3.31x1.87x0.59 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Remote outputs controlYes (over SMS)
Supported
Forced GNSS location update over SMSYes
On request
