Huabao HB-T10

Huabao HB-T10

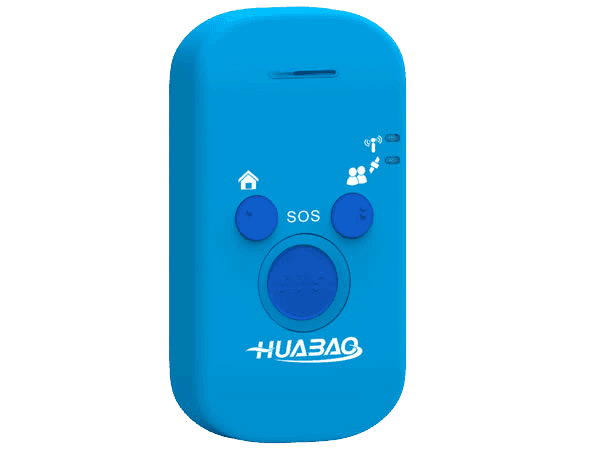

Huabao HB-T10 is a handheld personal GPS tracker with a limited set of functions.

Show more

Package content

The package contents:

  • GPS Tracker
  • AC Adapter (Charger)
  • USB Cable
  • Battery

Location and tracking

HB-T10 has only GPS support, and it doesn’t support GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.

The device continually tracks every 10 seconds (programmable), sending real-time GPS location updates. If the tracked vehicle stops moving, the built-in motion sensor detects this and stops sending unnecessary location information. When motion is detected again, tracking will continue.

Mobile networks

With Quad-band GSM 2G module Huabao HB-T10 can be operated all over the world.

Power supply

HB-T10 contains a 800 mAh battery. It is claimed that battery can last up to 30 days with the optional extended battery pack when set to motion-activated recording, or about 12 hours minimum in constant movement without the extended pack.

Emergency button

HB-T10 has a small SOS button. To send the SOS signal it’s required to hold the button pressed within 2-3 seconds. The device will then send a “HELP ME” text and email to 3 trusted individuals that you have predetermined. The text and email will contain the street address and map link. A “HELP ME” text and email containing their current or updated location will be sent to all users until the emergency is resolved.

Local and remote management

HB-T10 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also it is fully configurable via USB cable using proprietary software.

LED indication

HB-T10 has two LEDs for GPS and GSM status.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47726
Auto registrationYes

General information

PurposePersonal
Size80x40x17.5 mm (3.15x1.57x0.69 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

LBSYes
GPSYes

Features

OdometerYes
Built-in batteryYes
Battery capacity800 mAh
