Helioversal

Helioversal

More from Helioversal

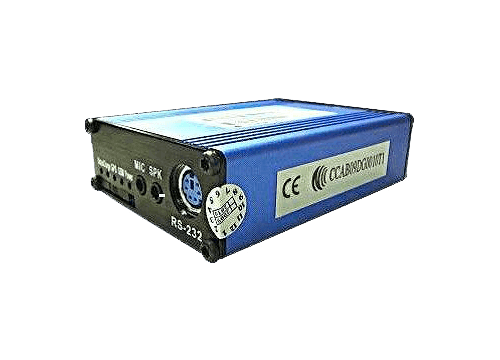

Click on the model image to see detailed information and current list of supported features

Looking for other Helioversal model? Suggest us to integrate it.

Server connection details

Supported features

Server Integration
Server Addresstracker.navixy.com
Server IP Address217.23.132.215
Server port46989
General information
PurposeVehicle
InstallationProfessional
Housing
Weight200 g (7.05 oz.)
Size95x77x25 mm (3.74x3.03x0.98 in)
GNSS Location
External antenna (GNSS)
GPS
Connectivity
Cellular network typeGSM Quad Band
External antenna (Connection)
Cellular network generation2G
Interfaces
Number of outputs3
Number of inputs (all types)5
ACC/Ignition input
Feature already supported
Discrete inputs
Feature already supported
Analog inputs
Feature can be supported upon request
Outputs
Feature already supported
Hardware features
Battery capacity1000 mAh
Built-in battery
Tracking features
Tracking modesContinuous
Remote management
Server connection setup over SMS
Feature already supported
Remote device configurationYes (over GPRS)
Feature already supported
Remote outputs controlYes (over GPRS)
Feature already supported
Forced GNSS location update over SMS
Feature can be supported upon request
Certification
CE
FCC

How to connect to Navixy server

Automatic activation (recommended)

The software platform supports automatic device activation by applying APN settings, server address and port, as well as recommended tracking mode though the SMS channel. Normally you don’t need to configure anything manually. Just install the SIM card, switch the device ON and make sure it is located in the place with good GPS signal reception.

You also need to keep the device with initial factory settings, in particular:

  • Do not set any password, keep it clear (as by default)
  • Do not set any master number prior to the device activation
  • Do not set local Time zone, it must be UTC+0h (as by default)

Manual activation

In case automatic activation failed, you can try to register the device manually by sending following command to the device:

$gprs,[APNname],[APNid],[APNpassword]

The [APN] parameters depend on your GSM carrier.
