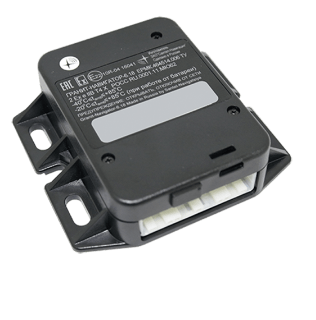

Granit-Navigator 6.18

Granit-Navigator 6.18 is designed to operate in the Russian emergency response system for the ERA-GLONASS accident. The ERA components are connected to each other using a cable specially designed for a specific vehicle. This cable also connects to the vehicle's on-board network and its CAN bus (if required).

Show more

Location and tracking

  • GPS, GLONASS, Galileo
  • Continious and interval tracking modes

Mobile networks

  • 2G, 3G

Power supply

  • External power supply (5… 30 V DC)

Inputs and outputs

  • 4 analog or discrete inputs

Other features

  • Local and remote management
  • LED indication
  • Protection of transmitted data by SSL, HTTPS protocols

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47746

General information

PurposeVehicle
InstallationProfessional

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes

Connectivity

Cellular network typeGSM/UMTS
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces3
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesInterval, Continuous

Self monitoring

Network signal levelYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
On request
