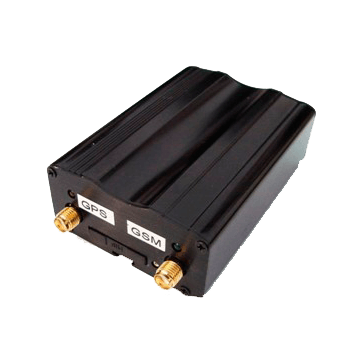

GoTop VT360

GoTop VT360 is a GPS/GSM/GPRS tracking device specially developed and designed for vehicle real-time tracking and fleet management. With superior GPS and GPRS modules, VT360 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.

Show more

Package contents

The standard package content includes:

  • 1 GPS Antenna
  • 1 GSM Antenna
  • 1 Set of socket cables
  • 1 Relay
  • 1 Microphone
  • 1 User manual

Location and tracking

GoTop VT360 model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module VT360 can operate all over the world where 2G networks are supported.

Features

Key features of the GoTop VT360 device are:

  • Engine Cut (Stop Engine)
  • Wiretapping / remote listenning
  • 2 Inputs
  • 2 Outputs
  • Analog input: 1 Analog input for temperature / Fuel sensor monitoring and detecting

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

GPS tracker GoTop VT360 can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

GoTop VT360 scheme

LED Indication

VT360 has two LEDs

  • LED indicating GPS reception
  • LED indicating GSM/GPRS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47735
Integrated on31/05/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight123 g (4.34 oz.)
Size75x54x25 mm (2.95x2.13x0.98 in)

GNSS Location

Internal antenna (GNSS)No
External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)No
External antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)3
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Engine block relayYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Voice listeningYes
On request
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported

Certification

CEYes
FCCYes
EACYes
