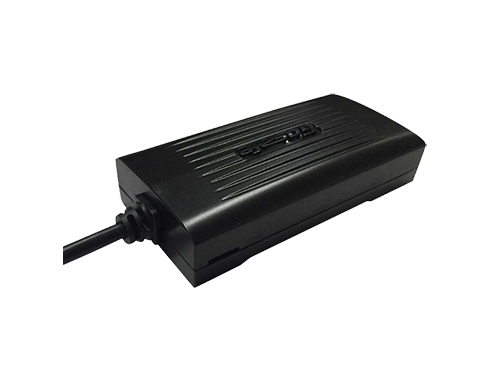

GoSafe G3C

The G3C competitive tracking unit from Gosafe offers superior GPS performance, with built-in internal 750mAh back-up battery, 3-axis accelerometer for motion sense, and with one input and one output (I/O). The G3C is a complete tracking unit with two version 2G as well as 3G covering all 5 bands of 3G communication. G3C is designed for 12 or 24 volt mobile vehicles with quick and easy installation procedure.

Show more

Location and tracking

GoSafe G3C model is embedded with GPS chip. It supports Assisted GPS (A-GPS) technology as well. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module G3C can operate all over the world where 2G networks are supported.

Features

Key features of the GoSafe G3C device are:

  • 750 mAh battery.
  • 3G support covering all 5 bands
  • 3-axis accelerometer

Power supply

External power supply range might be 12/24V, which makes possible to install device both on cars and vans.

GoSafe G3C also features an optional rechargeable 750 mAh backup battery. When fully charged it ensures about 6-9 hours of device uptime (in normal conditions).

Local and remote management

GPS tracker GoSafe G3C can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

In case ‘firmware’ of the device has an (some) error(s) or needs to be upgraded to provide the user with newly implemented services, the device can upgrade its internal ROM file over the air (Firmware OTA), using GPRS. The users do not need to visit the vehicle individually to download the new firmware on those vehicles.

LED Indication

G3C has three LEDs

  • LED indicating GPS reception
  • LED indicating GSM/GPRS reception
  • LED indicating Power status

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47771

General information

PurposeVehicle
InstallationProfessional

Housing

Weight80 g (2.82 oz.)
Size94x47x20.5 mm (3.7x1.85x0.81 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity750 mAh
Built-in batteryOptional
AccelerometerYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Firmware update OTAYes

Certification

CEYes
FCCYes
EACYes
