GPS device

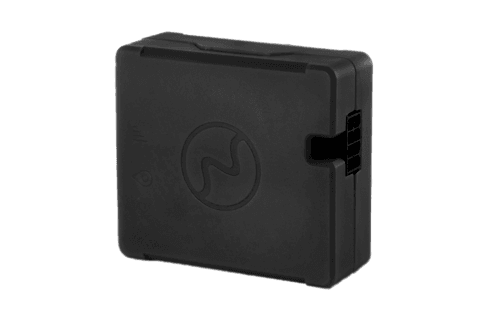

Fanset ADM333
FansetFanset ADM333 is designed to be mounted onto the vehicle to register its location, speed and driving direction, behavior by signals from GLONASS/GSP system. In addition, it registers a number of other parameters, such as the state of analog and digital inputs, and signals from sensors (sensor readings).
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47758 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 90x60x32 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Odometer | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| fuel_level | Yes |
| fuel_temperature | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| lls_level_2 | Yes |
| lls_temperature_2 | Yes |
| raw_can_64 | Yes |
| user_data_4 | Yes |
