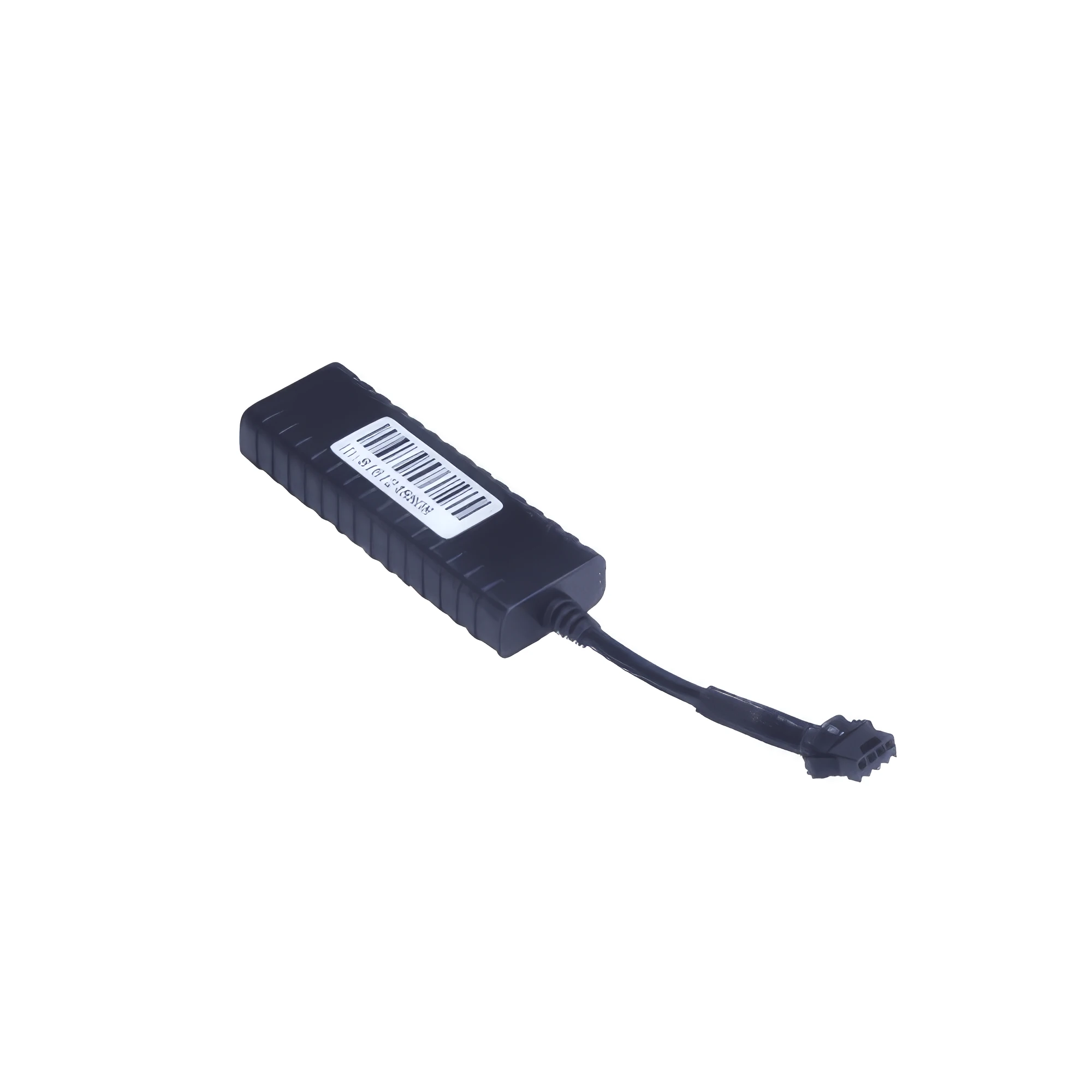

Esino ES-GT23

Esino ES-GT23 is a budget vehicle GPS tracker for personal and business needs. It has internal GPS and GSM antennas, a couple of inputs and an output for "remote engine block" feature.

Show more

Interfaces

  • Intputs:
    • ACC/Ignition status
  • Outputs:
    • Engine cut relay (engine block feature)

Location and tracking

  • Continuous tracking mode
  • LBS Support

Power supply

  • External power supply (10-80V)

Mobile networks

  • 2G Network
  • 850/900/1800/1900 Mhz

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47735

General information

PurposeVehicle
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size76x26x13 mm (2.99x1.02x0.51 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
On request
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Remote outputs controlYes (over SMS)
Forced GNSS location update over SMSYes
On request

More from Esino

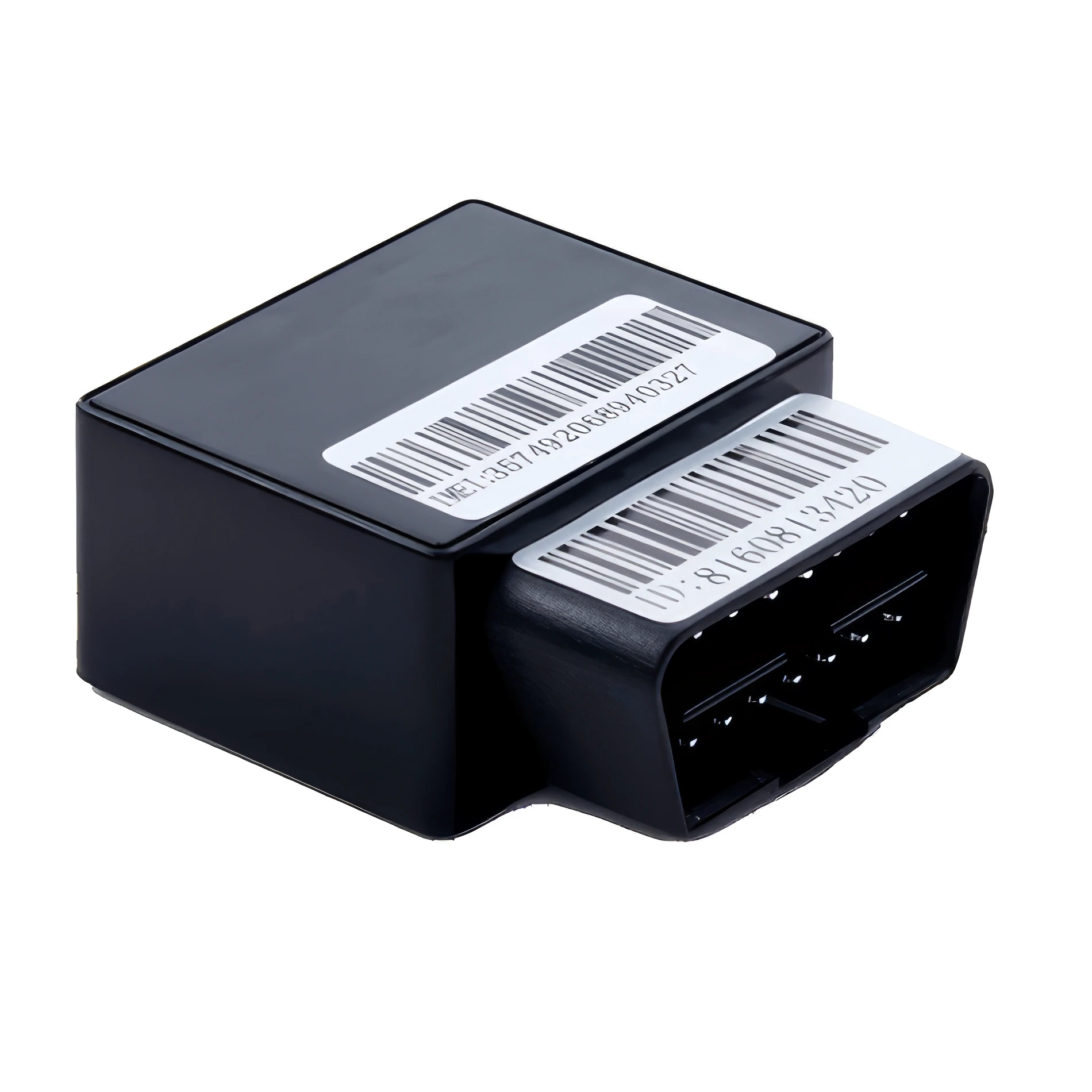

Esino ES-GP34
