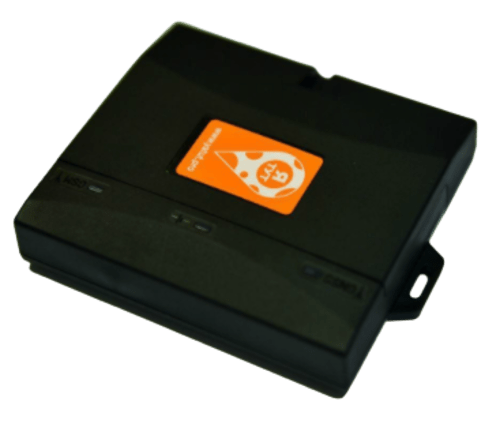

YA TUT F
YA TUT F is designed to monitor vehicles using the GLONASS/GPS positioning system, including GLONASS/GPS positioning system, including for determining vehicle location, speed, and direction of its movement, as well as for transmission of accumulated data via GSM standard communication network. The unit has a built-in processor with CAN-processor function and support for three CAN-bus, which makes it possible to obtain complete information about the vehicle. Nonvolatile memory allows you to store information about the events and statuses of the unit in the no power supply.
Mostrar más
Location and tracking
- GPS, GLONASS
- Continuous tracking mode
Mobile networks
Frequency bands: 2G (GSM): 850/900/1800/1900 MHz
Power supply
- Build-in battery LiPo 3.7 V 560 mAh
- External power supply 9 – 32 V DC
Inputs and outputs
- 5 Digital inputs
- 15 Analog/ Frequency/ Inpulse inputs
- 4 Digital outputs
- 1 RS232
- 1 RS485
- 1-wire interface
- CAN reader
Other features
- Micro USB and 3x indications LEDs
- Odometer
- Fuel level, Temperature, CAN sensors
- Driver registration and identification
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47768 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 100 g (3.53 oz.) |
| Tamaño | 110x67x20 mm (4.33x2.64x0.79 in) |
| Impermeable | IP53 |
Conectividad
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| GPS asistido | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Acelerómetro | Sí |
| Lectura del identificador del conductor | Sí |
| Batería integrada | Sí |
| Capacidad de batería | 560 mAh |
Interfaces
| Entradas digitales | 8 |
| Número de salidas | 8 |
| Sensor analógico | Sí |
| Sensor de impulsos | Sí |
| Sensor de frecuencia | Sí |
| Interfaz 1-Wire | Sí |
| Tipo de lector CAN/OBDII | Externo |
