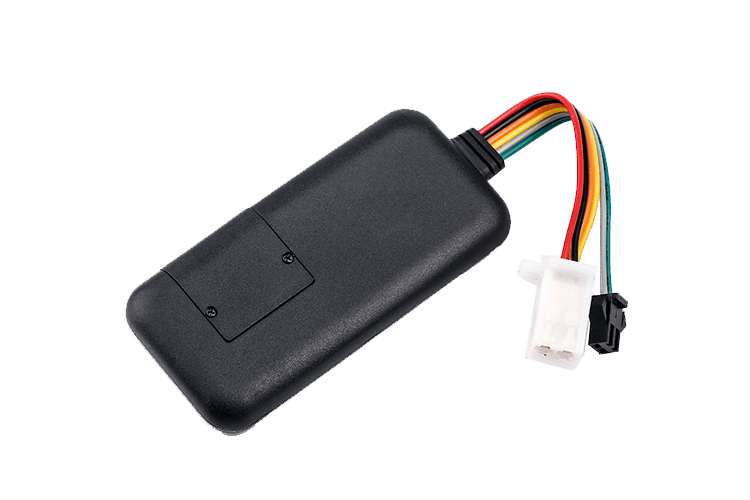

Eelink TK119

Package contents

Eelink TK119 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

Also, manufacturer offers optional accessories such as Power Cables（Fault）and an engine relay for remote cut off / resume oil.

Product features:

• Super Wide Input Voltage：9-72V DC.
• Support GPS / Beidou / Glonass precise positioning system, support A-GPS
• GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app platform and SMS query.
• Supports ACC status checking and vehicle status notifying.
• Built-in battery, Power disconnect alarm & Low battery alarm.
• Built-in G-sensor ,Vibration, collision and falling alarm.
• GEO-fence alarm, speed & shift alarm.
• Use relay to remotely cut the oil.
• Extend I/O port to add extension function.
• Multiple protocol support, OTA upgrade program.
• Water proof level IP67

Location and tracking

Eelink TK119 is embedded with GPS, it also supports GLONASS and Beidou systems.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

TK119 has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

TK119 features a rechargeable 90 mAh battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).

Local and remote management

Eelink TK119 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
