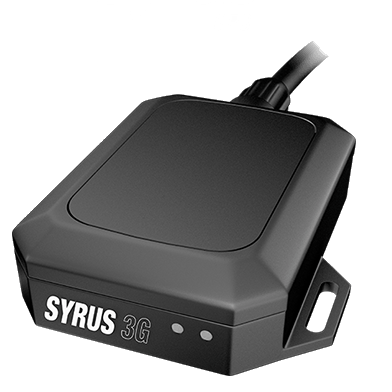

Syrus 3G (S3G-2480)

Intelligent hub specially designed for actionable telematics, multiple sensors integration, and IoT interoperability. The SYRUS 3G has all the features and even more ports compared to previous models plus a wide range of new intelligent metrics and built-in counters for Actionable Telematics, API interaction, Advanced Fleet Management, Security, Automation, and agile customized development.

Mostrar más

Location and tracking

Syrus 3G (S3G-2480) is embedded with 3G chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

GSM/GPRS/EDGE: Quad band
850/900/1800/1900MHz
UMTS/HSPA+: Penta band
800/850/900/1900/2100MHz

Features

Key features of the S3G-2480 device are:

  • Intelligent configurable event engine, easy setup, reports up to 3 different actions per event.
  • Turn by turn reports to guarantee the best possible tracking resolution.
  • Motion detector, shock, and aggressive driving detection
  • Molex automotive type connector.
  • TCP and/or UDP and/or SMS/SMPP communication protocols supporting up to 5 different IP or DNS destination servers and up to five SMS telephone Numbers.
  • Binary and/or ASCII GPS protocols.
  • Full audio/voice port for two-way communication.
  • Store and forward: 7.200 events.

Interfaces

S3G-2480 is equipped with multiple inputs and outputs.

Offering 3 inputs, 1 ignition input, 1 ADC input, 1 one-wire input, and 2 outputs, makes it ideal to control, manage and monitor fuel sensors, doors, panic buttons, vehicle immobilizer, siren, lights, driver identification with Dallas keys or any other compatible telematics application.

Also, it has serial port RS232 (DB9) for easy integration with any external device like mobile data terminals, barcode scanners, satellite modems or RFID tag readers.

Power supply

The external power supply range might be 8V – 32V, which makes it possible to install Syrus 2G both on cars and vans.

S3G-2480 also features an internal backup battery (250 mAh) that allows up to 6 hours of device work.

The manufacturer also claims reverse polarity protection and thermal shutdown for enhanced battery life, as well as automatic power saving mode based on the status of the ignition input and motion detector.

Local and remote management

S3G-2480 tracker is fully configurable over the network via GPRS and/or SMS commands. Also, operational firmware can be upgraded over the air (FOTA), as well as over the RS232 port.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47732
Integrado06/11/2021

Información general

FinalidadVehículo
InstalaciónProfesional

Alojamiento

Peso220 g (7.76 oz.)
Tamaño99x93x31 mm (3.9x3.66x1.22 in)

Localización GNSS

Antena interna (GNSS)
GPS

Conectividad

Tipo de la red del celularUMTS/HSPA 850/1900, GSM Quad Band
Antena interna (Conexión)
Generación de red celular3G, 2G

Interfaces

Número de Interfaces RSC2321
Número de salidas2
Número de entradas (todos tipos)8
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz RS232
Interfaz 1-Wire
Salidas
Soportado

Características de hardware

Capacidad de batería250 mAh
Batería integrada
Acelerómetro

Hardware extras

Lectura del sensor del nivel de combustible
Soportado
Lectura del identificador del conductor
Soportado

Características de rastreo

Modos de rastreoContinuo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado
Odómetro
Soportado

Monitoreo de eventos

Poca batería
Soportado
Cambio de entrada
Soportado
Dispositivo on/off
Soportado
Jamming del señal móvil
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Control remoto de las salidasSí (por GPRS), Sí
Actualización de firmware OTA

Certificacón

CE
FCC
